4G building timed interval photography high-definition engineering camera with built-in large capacity battery solar camera

As a professional provider of IoT data acquisition solutions and an expert in industrial IoT data acquisition, the editor of Shanghai Data Acquisition IOT Technology Co., Ltd， (daq-iot) hereby presents the following introduction, and sincerely welcomes discussions and exchanges. Supported Communication Interfaces: CAN, RS485, Mbus, 4–20mA, Profibus, CC-Link, HART, digital I/O, etc. Industrial Protocols: Modbus RTU/TCP, HJ212, IEC104, DLT645, DLMS, IEC61850, MQTT, etc. Mail:export@daq-iot.com

1 Product Overview

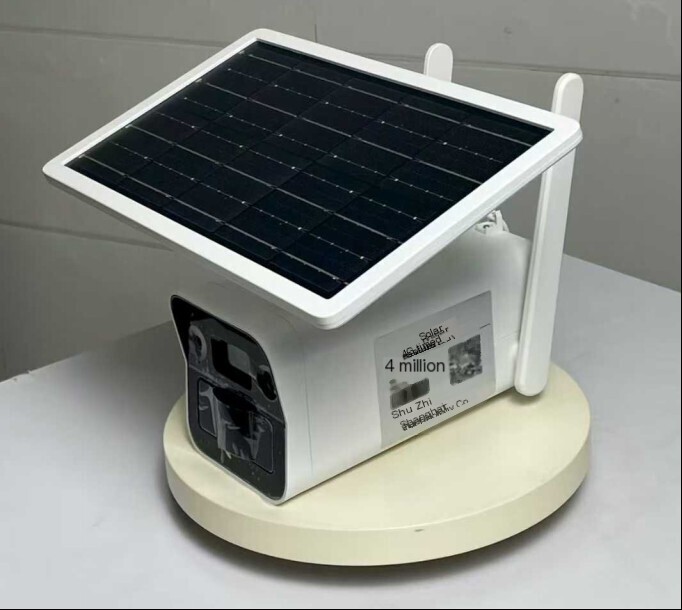

SC-LP-CAM4G isShanghai DAQ-IoTNetwork Technology Co., LtdA low-power 4G solar powered wireless timed camera has been launched, which supports 4G or WiFi network access, takes timed photos, and uploads them to a designated FTP server or stores them on an SD card. The product is mainly used in outdoor and urban areas where wiring is inconvenient, such as capturing the cleanliness of various property service places, along railways, highways, construction sites, reservoirs and dams, river sources, mining areas and scenic spots, forest fire prevention, cultural relics and historical sites, village roads, fishing grounds, forest farms, pastures, wildlife reserves, farmland and fruit forests, factory areas, villas, islands, etc.

Advantages of this product: environmental protection and energy saving, no need to dig trenches or install power frames, no need for a large number of wire and pipe materials, no need for power transmission and transformation equipment, short construction period, no consumption of mains electricity or electricity bills, no geographical location restrictions, low maintenance costs, low voltage and no risk of electric shock, and many other advantages.

2 Service Philosophy

Our Zhengzhou company promises:

You are not only purchasing products, but also receiving meticulous and thoughtful technical support services.

We provide free remote guidance, remote configuration and debugging services, and send data to the server specified by the customer.

Free consultation service forIoTsolution!

3 Product characteristic parameters

3.1 Camera parameters and selection

Resolution:2560X1440 P

Sensitivity (optional):High Brightness (4 000mV/luxS)

Starlight level (4800mV/luxS)

Lens focal length (optional):

4 mm， Horizontal field of view: 79 °, vertical field of view: 43 °, diagonal field of view: 93 °

6 mm， Horizontal field of view angle: 49 °, vertical field of view angle: 26 °, diagonal field of view angle: 57 °

8 mm， Horizontal field of view: 37 °, vertical field of view: 20 °, diagonal field of view: 43 °

Type of fill light: infrared light, white light

3.2 Electrical Characteristics

Power supply method:Powered by solar energy or batteries

Current and power consumption:12 V| 0.5 A, 6 W

Battery capacity: 32.56 Wh

3.3 Communication characteristics

4G standard

LTE-TDD/LTE-FDD

4G frequency band

LTE-TDD：Band 34/38/39/40/41

LTE-FDD：Band 1/3/5/8；

4G upload mode:Real-time:720P、1080P、1440P

Low power consumption;Remote playback of recorded videos or photos

Image upload:FTP server

3.4 structural characteristics

Antenna type:Rubber stick external antenna

Equipment weight: 1.4Kg

Material:PC plastic (shell)

Main protection level:IP66

Product size: 292.4 × 188.7 × 213.7 mm

3.5 working environment

Run at -20~50 ℃, charge at -10~50 ℃; Humidity 0-95% (non condensing)

4 Core advantages of the product

function	SC-LP-CAM4G	Other solar monitoring systems
power consumption	Continuous recording<0.3W, detection<0.2W, continuous recording on rainy days>10 days	Continuous recording>2W, continuous recording on rainy days<2 days
Volume and weight of solar panels	Three sided 3W solar panel integrated, with built-in battery, weighing less than 2KG, easy and convenient to install	80W solar panel, separate battery monitoring, total weight>40KG
Low traffic and long storage time	Autonomous compression algorithm, saving 40% of traffic, 32GB continuous video coverage storage>8 days	H265 compression algorithm， 32GB continuous video recording coverage storage<5 days
Detection method	AI image motion detectionLow false alarm	Infrared or radar detection, high false alarm
Replay retrieval	Replay AI automatic search, filter unmanned images or quickly locate annotated time points	This feature is not available.
service life	Optimize storage algorithm, with a continuous recording lifespan of over 7 years for storage cards, low battery loss due to low-power consumption, and a continuous working lifespan of over 6 years	Standard storage format, frequent memory card erase and write, continuous recording lifespan<1 year, high battery loss, lifespan<3 years
reliability	Professional chip solution ensures no crashes in the field, with three solar panels fully absorbing solar energy and not afraid of heat	Ordinary monitoring with separate connections between solar panels and batteries is prone to crashes and lightning strikes, posing a high level of danger

5 Application Cases

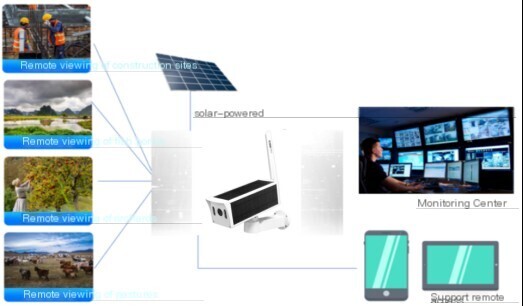

The low-power 4G solar wireless timing camera is mainly developed and designed as a low-cost and high-efficiency integrated monitoring and transmission product to meet the needs of the outdoor civilian monitoring market. Low power 4G camera powered by solar panels and lithium batteries. By integrating a 4G module, the monitoring problem in application scenarios without wired networks or direct power supply has been perfectly solved; 4G coverage is more stable and eliminates the cost of deploying wired networks.

At present, this solution is at the forefront of stability, reliability, and performance in the same industry. It has been widely used in rural breeding, planting, tourist attractions, rural courtyard monitoring, rural road snow engineering projects, reservoir and dam projects, power and water projects, as well as monitoring the cleanliness of urban construction sites, roads, and various property service places.
