4G/LoRaWAN wireless ultrasonic flowmeter thermal instrument terminal - external clamp type non rupture tube installation

As a professional provider of IoT data acquisition solutions and an expert in industrial IoT data acquisition, the editor of Shanghai Data Acquisition IOT Technology Co., Ltd， (daq-iot) hereby presents the following introduction, and sincerely welcomes discussions and exchanges. Supported Communication Interfaces: CAN, RS485, Mbus, 4–20mA, Profibus, CC-Link, HART, digital I/O, etc. Industrial Protocols: Modbus RTU/TCP, HJ212, IEC104, DLT645, DLMS, IEC61850, MQTT, etc. Mail:export@daq-iot.com

As a professional provider of IoT, Data Acquisition, and solution, and an expert (professional account) in the industrial Data Acquisition field, daq iot, the technology editor of Shanghai DAQ-IoT website, would like to introduce the following content and sincerely welcome everyone to discuss and exchange ideas.

As a professional internet of things data acquisition solutions provider, industrial data acquisition experts (professional households), digital internet of things editor ,shanghai daq-iot here to do the following introduction, and sincerely welcome everyone to discuss and exchange.

4G/LoRaWANWireless ultrasonic flowmeter thermal instrument terminal, external clip on installation without breaking pipe, equipped with temperature probe, collects parameters such as instantaneous flow rate, flow velocity, cumulative heat, and return water temperature of the pipeline, and remotely views the data through a mobile APP. Realize remote online monitoring and early warning of pipeline flow and temperature.

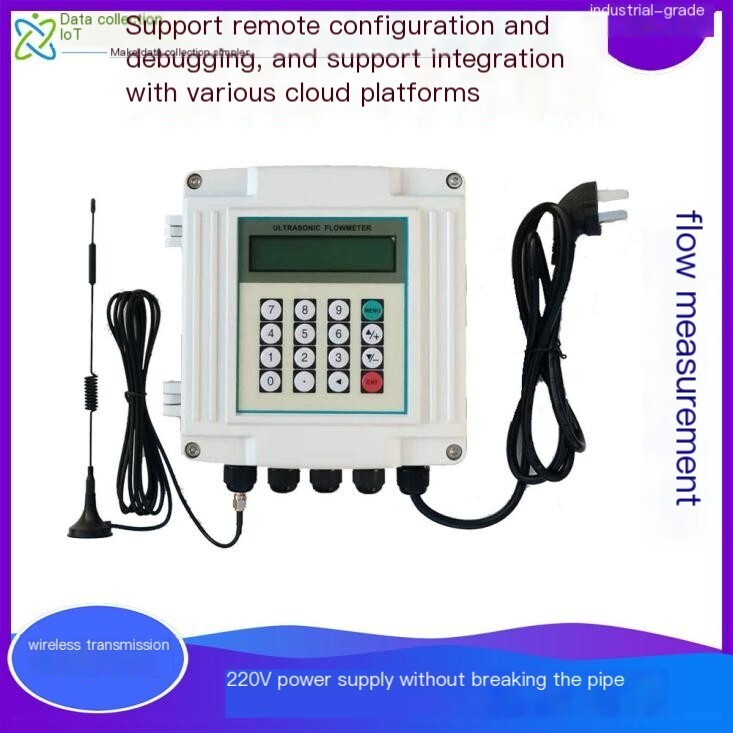

DAQ-GP-UF4G wireless external clamp ultrasonic flowmeter is a product developed byShanghai DAQ-IoTTechnology Co., Ltd4G wireless transmissionThe universal ultrasonic flowmeter heat meter powered by AC/DC wide voltage can collect instantaneous flow rate, instantaneous heat flow rate, etc. in pipelines. Compared with traditional flow meters, external clamping ultrasonic flow meters have the advantages of convenient and fast installation, no need to cut off pipes or stop flow, and truly achieve non-destructive online installation.

Product Details

1 Product Overview


DAQ-GP-UF4G/LoRaWAN wireless external clamp ultrasonic flowmeter is a universal ultrasonic flowmeter heat meter based on 4G/LoRaWAN wireless transmission and AC/DC wide voltage power supply, launched by Shanghai DAQ-IoT Network Technology Co., Ltd. It can collect instantaneous flow rate, instantaneous heat flow rate, etc. in pipelines. Compared with traditional flow meters, external clamping ultrasonic flow meters have the advantages of convenient and fast installation, no need to cut off pipes or stop flow, and truly achieve non-destructive online installation.

The wireless external clip ultrasonic flowmeter heat meter supports 4G/WiFi/LoRa communication, which can greatly simplify on-site deployment time and reduce construction costs. Widely used in the heating industry, water supply, heat metering and charging, water treatment industry, fuel oil, light oil, chemical industry and other industries.

2 Ordering specifications and selection

modeltransmission methodFeature Description
DAQ-GP-UF4G4G wireless4G communication, 9-36V DC power supply, suitable for situations with high acquisition frequency or convenient external power supply. Because the device defaults to long-term online, it can support remote configuration parameter debugging.
DAQ-GP-UFLoRaWANLoRaWAN wireless transmissionLoRa Communication
DAQ-GP-UFWiFiWiFi wireless transmissionWiFi communication

3 service philosophy

Our company solemnly promises:

You are not only purchasing products, but also providing meticulous and thoughtful technical support services！！！( =^_^= )

This product only requires ordinary workers to connect and install it on site! No debugging required!

We provide free remote guidance, remote configuration and debugging services, and send data to the user's designated cloud platform.

Free consultation service forIoTsolution!

4 Product characteristic parameters

4.1 Collection characteristics

Measurement range: DN15~6000 (pipe diameter)

Measurement medium: water, seawater, industrial wastewater, acidic and alkaline liquids, alcohol, beer, various oils, and other single and uniform liquids that can transmit ultrasonic waves

Accuracy: ± 1%

Display: 2x20 character LCD display

4.2 Electrical Characteristics

Power supply mode: 9-36V DC power supply/220V AC power supply

Working power consumption: 1-2W

4.3 Communication characteristics

Wireless transmission method: GPRS/NB IOT/LoRa/WiFi

Communication Protocol:MQTT/TCP/UDP/HTTP/SSL/ModBus RTU, Can customize other Protocol

Data forwarding: Any public network server

Number of server centers: Supports reporting data to up to 7 cloud servers simultaneously.

Heartbeat Package: Supports custom heartbeat packages that can be set to signal strength.

Registration Package: Supports custom registration packages that can be set as IMEI codes.

L positioning: Supports LBS base station positioning, making it convenient to query device location.

Signal output:

1-channel 4-20mA current output, impedance 0-1K

1-channel 0CT pulse output (default pulse width 200ms)

1 relay output

4.4 structural characteristics

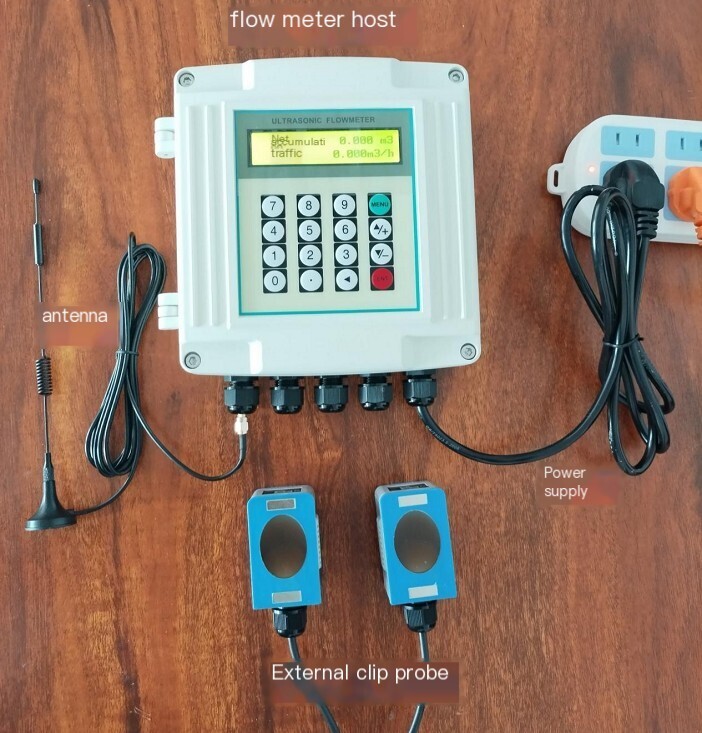

Ultrasonic flowmeter=host+ultrasonic Sensor

Ultrasonic calorimeter=Host+Ultrasonic Sensor+Temperature Sensor

Antenna type: External suction cup antenna

Material: Aluminum alloy shell

Main protection level: IP65

Sensor Protection level: IP68

Main installation method: wall mounted installation

4.5 working environment

Temperature

Host: -20 ° C~+60 ° C; Flow Sensor: -30 ° C~+160 ° C

L humidity

Host: 85% RH; Flow rate Sensor: Can work submerged in water, water depth<2m (Note: Sensor after gluing)

5 Core advantages of the product

V installation is simple and flexible, with fast deployment. Sensor can be installed in the form of pipe segments, insertions, or external clips

The V-probe is attached to the outer wall of the pipeline without the need for end pipe interruption

V supports custom registration and heartbeat packages, making it easy for the platform to distinguish devices.

V supports any IoT cloud platform and configuration software, providing data Protocol docking

V supports Alibaba Cloud, Baidu TiangongOneNetMainstream cloud platforms such as Tencent Cloud

Non invasive collection, does not affect the normal operation of the equipment

V supports remote parameter configuration and FOTA remote upgrade, greatly reducing personnel costs for on-site construction and maintenance

6 Data reporting communication Protocol

6.1 Protocol Explanation

Multiple push methods such as UDP/TCP/MQTT/HTTP require users to provide the public IP address and port number of the cloud server when receiving data.

JSON Example of Format Data Message:

{

"deviceId":123456789, //Equipment serial number

"flow":11.1, //Instantaneous flow rate, unit: m ³/h

"heatFlow":12.21, //Instantaneous heat flow rate, unit: GJ/h

"fluidSpeed":11.1, //Fluid velocity, unit: m/s

"fluidSoundSpeed":11.1, //Measure fluid sound velocity, unit: m/s

"positiveFlow":11.1, //Positive cumulative flow, unit: m ³

"negativeFlow":11.1, //Negative cumulative flow, unit: m ³

"positiveHeat":11.1, //Accumulated heat, unit: GJ

"negativeHeat":11.1, //Negative accumulated heat, unit: GJ

"netFlow":11.1, //Net cumulative flow, unit: m ³

"netHeat":11.1, //Net accumulated heat, unit: GJ“

"supplyTemp":11.1, //Water supply temperature, unit: ℃

ReturnTemp ": 11.1//Return water temperature, unit: ℃

}

6.2 Protocol Reception Test

NetAssist, a network debugging assistant, can be used for receiving testing.

6.3 Protocol Customization

If you need to customize other communication Protocol, you can contact the business personnel for communication.

7 platform integration

7.1 Default platform

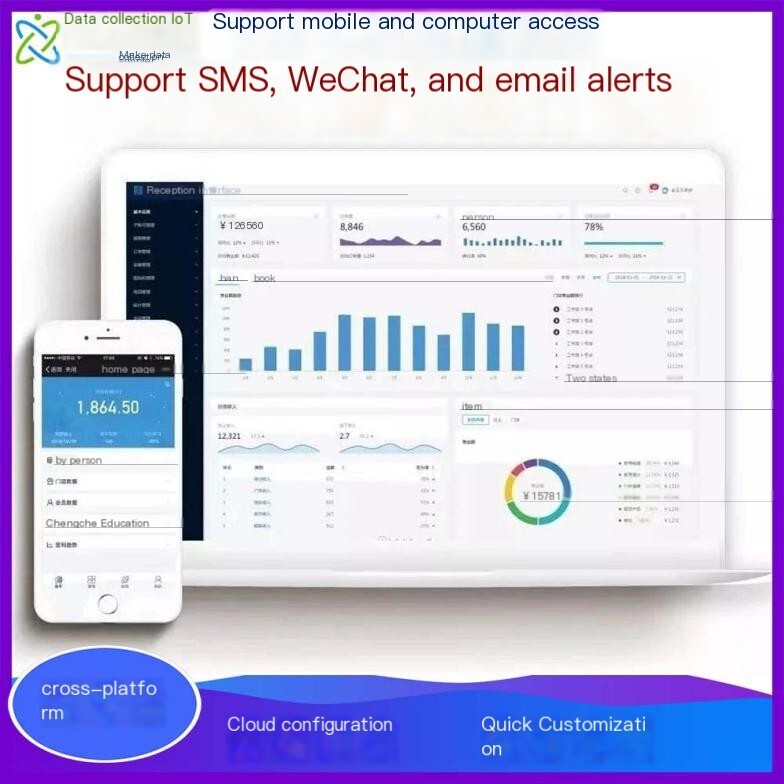

The product is connected to our designated open industrial IoT platform by default when it leaves the factory. The platform interface is as follows:

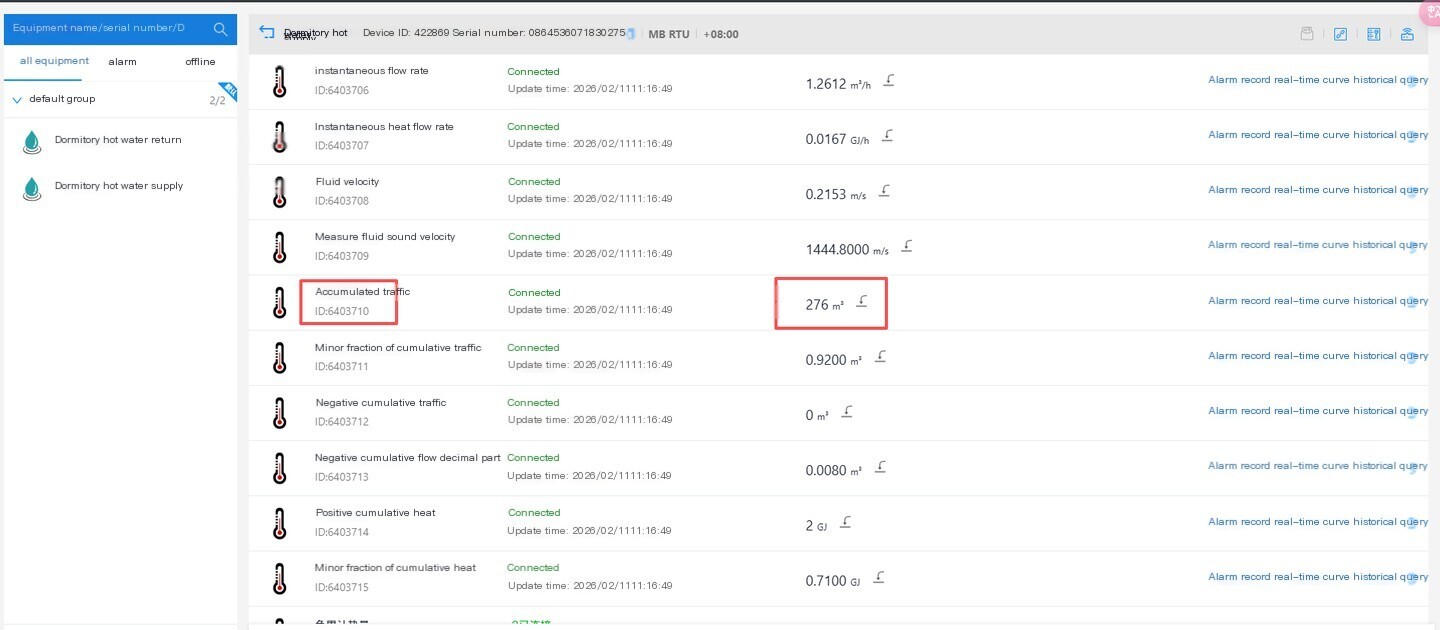

Computer browser interface

Mobile WeChat Access Interface

7.2 User specified platform

Taking Alibaba Cloud platform integration as an example, after users create products and add devices on Alibaba Cloud IoT platform, they need to provide a triplet: {ProductKey, DeviceName, DeviceSecret} and the MQTT topic to be published.

For example, the values of a triplet are:

ProductKey = b0FMK1Ga5cp

DeviceName = 862991419835241

DeviceSecret = y7MTCG6Gk33Ux26bbWSpANl4OaI0bg5Q

Taking OneNet platform integration as an example, after creating products and adding devices on China Mobile's OneNet platform, users need to provide product IDs and device registration codes.

For example:

ID：332590

Registration code: DGRUa7Vr9KYGunwJ

8 Application Cases

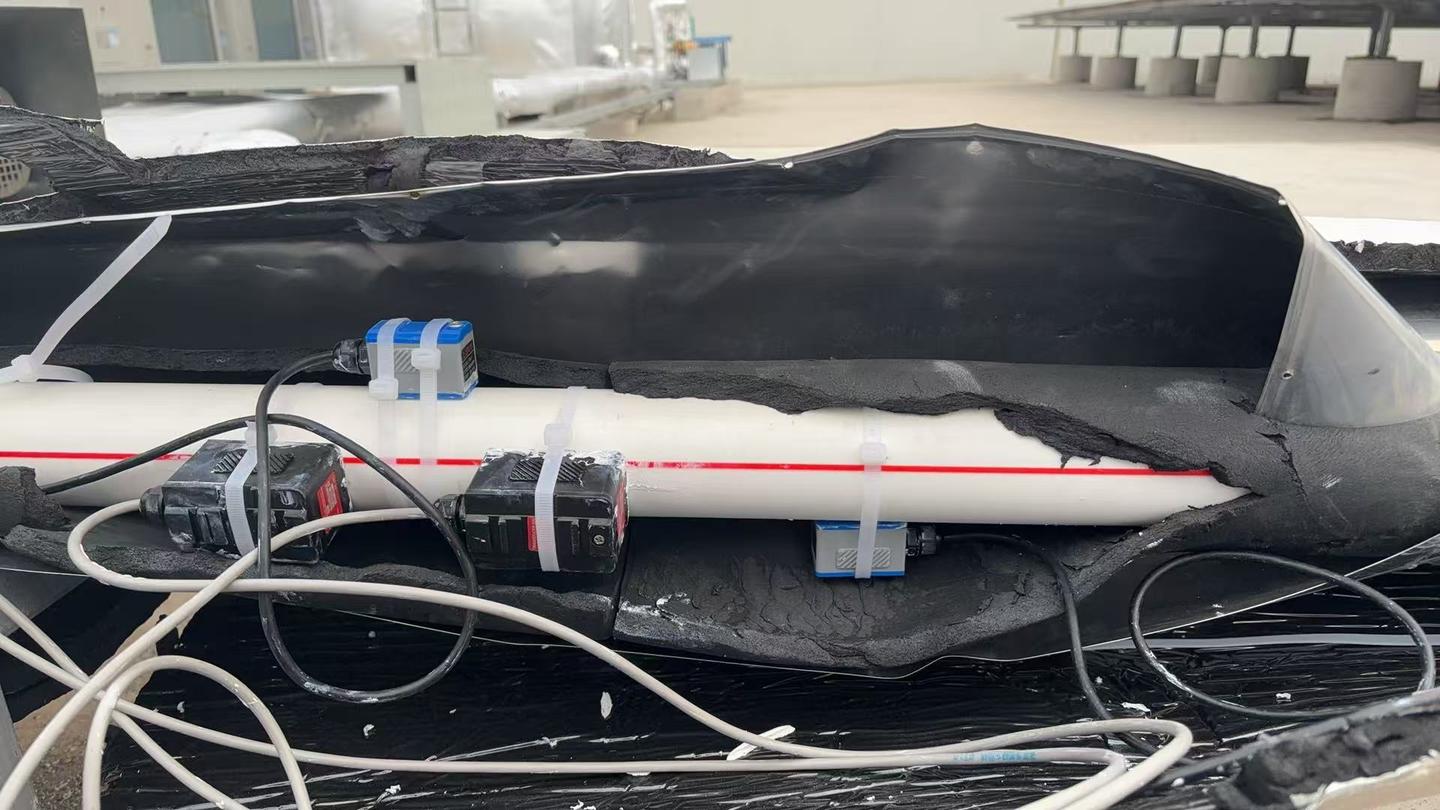

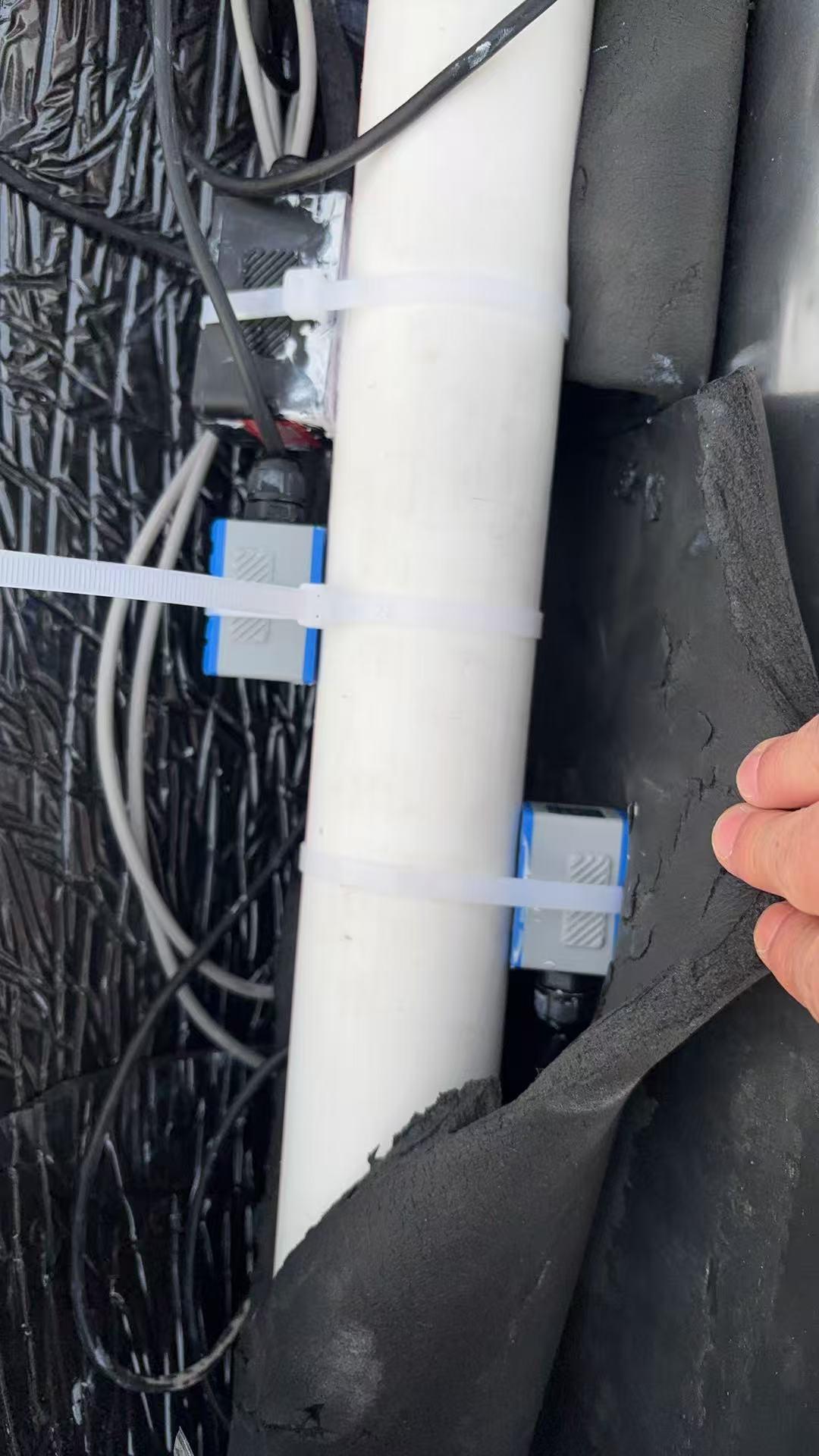

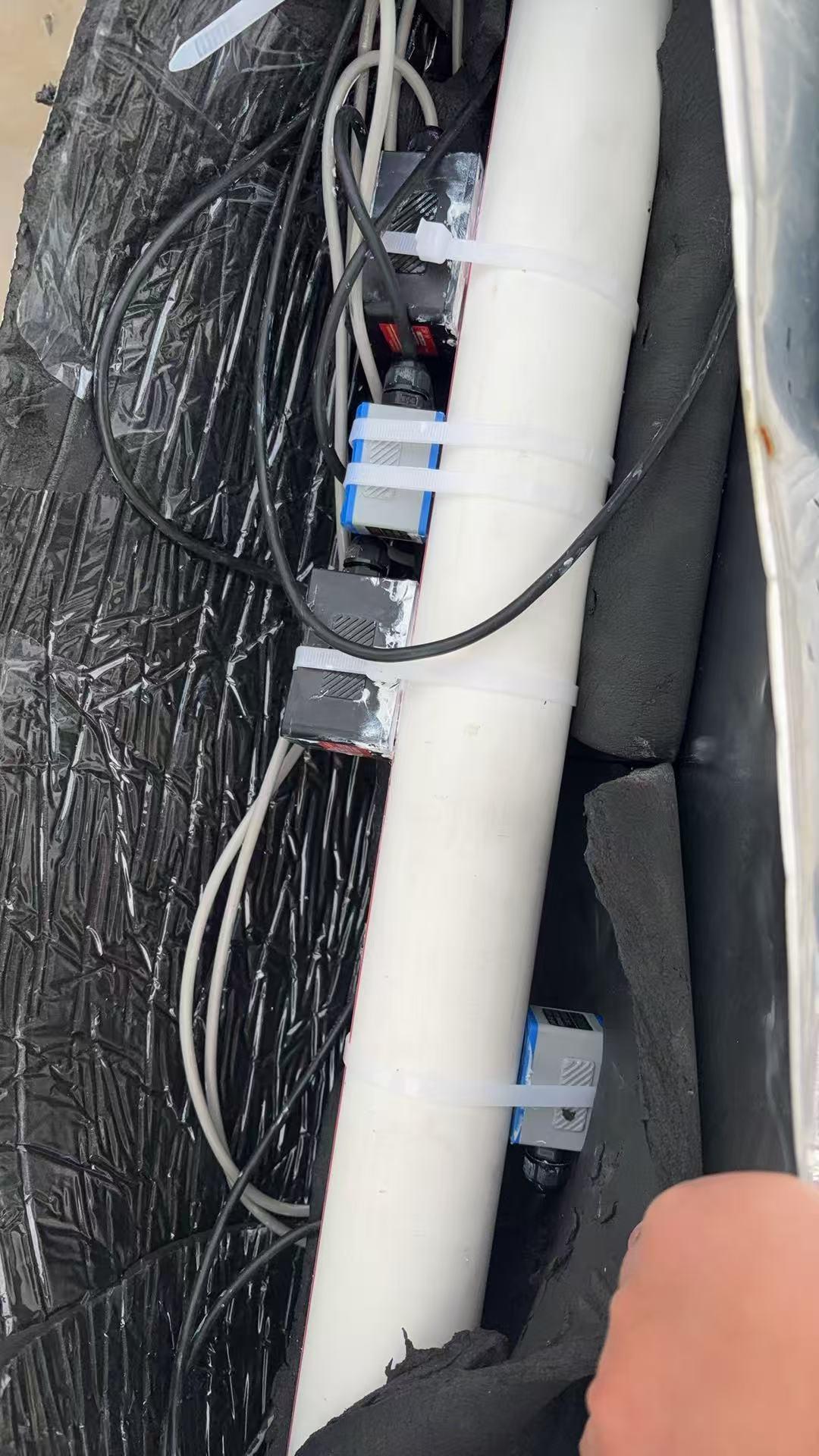

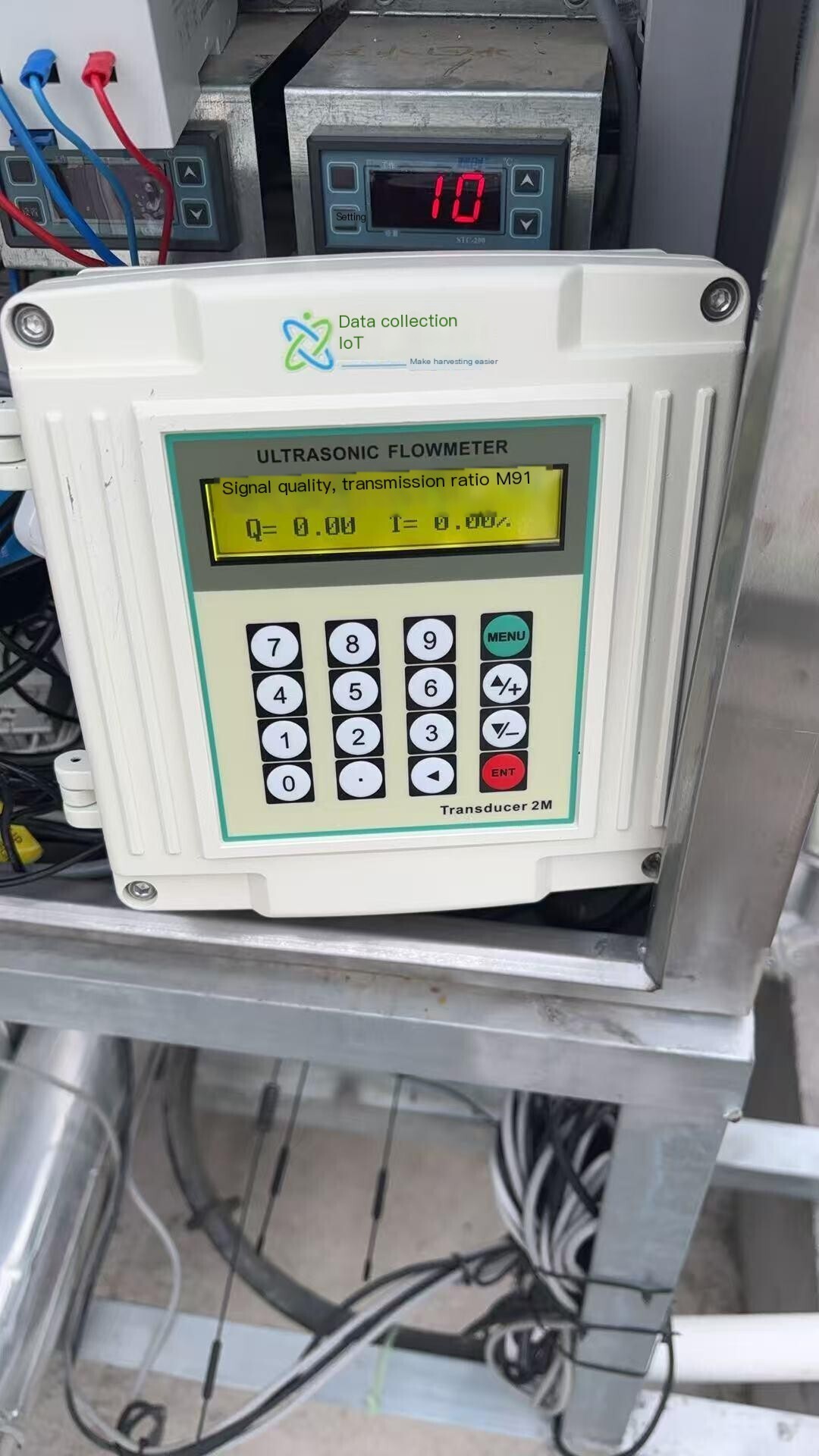

Installation effect diagram
