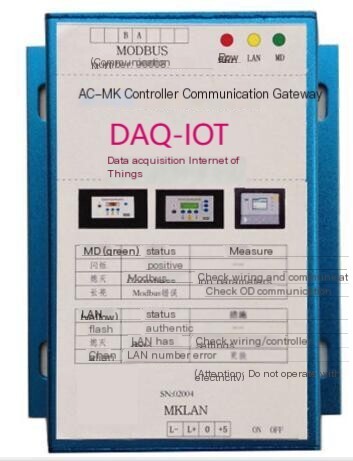

Atlas air compressorData AcquisitionGateway

1. Introduction

DAQ-GP-AMmodbus Gatewayis used to connect Atlas MK2, MK4 and MK5 computer controllers and convert the data of these controllers into standard ModbusRTU Protocol。 Through this Gateway, the operating status and parameters of the air compressor can be monitored, and the start, stop, loading, and unloading of the air compressor can also be controlled through serial communication. ThisGatewaycan connect 5 Atlas air compressors at the same time without additional configuration to form an air compressor group control network. The upper computer or PLC passes through RS485 Interface, using Modbus RTU Protocol, can interface with the network Real-time. The main parameters of DAQ-GP AMmodbus are as follows:

DAQ-GP AMmodbus compatible AC

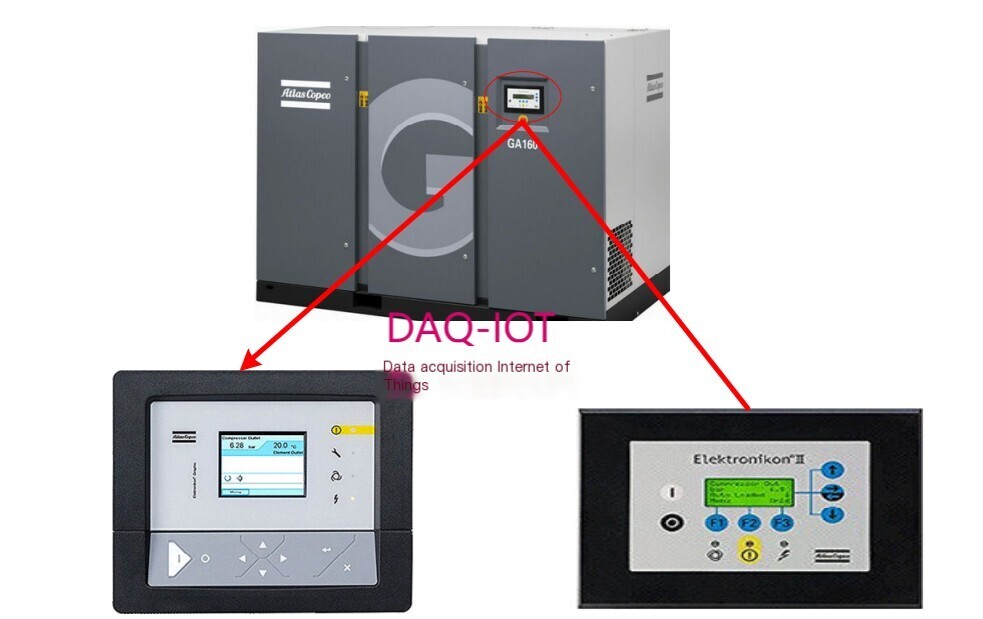

The air compressor panel is as follows:

As a professional provider of IoT, Data Acquisition, solution, and an expert (professional account) in the industrial Data Acquisition field, Daq IoT, the editor of IoT, would like to introduce the following content and sincerely welcome everyone to discuss and exchange ideas.

As a professional internet of things data acquisition solutions provider, industrial data acquisition experts (professional households), digital internet of things editor daq - iot here to do the following introduction, and sincerely welcome everyone to discuss and exchange

Model: DAQ-GP AMmodbus

Function: Atlas screw air compressor communicationGateway, upper computer or PLC can monitor the air compressor through Modbus communication.

Interface: MKLAN -1-to-many connection with the air compressor controller;

A and B - Modbus (485)

Specification: 122 * 84 * 24 (mm)

Power supply: 220V AC, 60mA

Installation: Wall mounted fixed (user can configure according to the site)

Attachment: Power adapter, air compressor communication connector

Support panel types

AC air compressorForm a "hand-in-hand" network, ultimately connected to the MKLAN interface of DAQ-GP AMmodbus, and the upper computer or PLC is connected through the Modbus interface.

2. Wiring

Connect the DB9 plug to the controller's LAN plug; The upper computer is connected to the "AB" terminal through a Modbus (485) cable;

Set the addresses on the controller panel to 1-10, and the corresponding Modbus slave addresses are 1-10;

When accessing the upper computer, collect data according to Modbus slave addresses 1-10, and use the table in Part 3 for the address table.

One to many connections

3. Modbus Address Table

serial number	name	Modbus address	visit	data type	explanation
1	control command				1: Start up; 2: Stop; 3: Loading; 4: Uninstall
2	Reset instruction				1: Fault shutdown; 2: Start up malfunction
3	Exhaust pressure				Unit Bar, value * 0.001
4	Dp oil separator				Ditto.
5	oil pressure				Ditto.
6	Pressure of intercooler				Ditto.
7	exhaust gas temperature				Unit ℃, value * 0.1
8	1 # rotor exhaust temperature				Ditto.
9	2 # rotor inlet temperature				Ditto.
10	2 # rotor exhaust temperature				Ditto.
11	Reserve				Ditto.
12	Reserve				Ditto.
13	Reserve				Ditto.
14	oil temperature				Ditto.
15	Emergency stop input				0: Emergency stop; 1: Normal
16	Remote start stop input				0: Shutdown; 1: Start up
17	Remote loading and unloading input				0: Uninstall; 1: Loading
18	Remote pressure control input				0: On site; 1: Remote
19	Main motor overload				0: Overload; 1: Normal
20	Fan motor overload				0: Overload; 1: Normal
21	Motor operation feedback				0: Stop; 1: Run
22	Operating status				1: Operation; 0: Stop
23	Add/unload status				1: Loading; 0: Uninstall
24	Integrated Alarm				1: Alarm; 0: Normal
25	Comprehensive fault shutdown alarm				1: Alarm; 0: Normal
26	Comprehensive fault shutdown				1: Shutdown; 0: Normal
27	Maintenance Tips				1: Maintenance; 0: Normal
28	Startup failure				1: Fault; 0: Normal
29	Emergency shutdown				1: Emergency stop; 0: Normal
30	Hand/Automatic Adjustment				1: Automatic; 0: Manual
31	Local/remote control				1: Remote; 0: On site
32	Low running time in bytes				Hour high character * 65536+low character
High running time in bytes
33	Low loading time in bytes				Ditto.

	loading time	high byte		R
34	Number of motor starts	low-byte		R		High letters * 65536+low letters
Number of motor starts	high byte		R
35	Module communication time	low-byte		R		High letters * 65536+low letters
Module communication time	high byte		R
36	Loading times	low-byte		R		High letters * 65536+low letters
Loading times	high byte		R
37	Pressure band selection					1 or 2
38	Load pressure band 1					Unit Bar, value * 0.001
39	Unload pressure band 1					Ditto.
40	Load pressure band 2					Ditto.
41	Unload pressure band 2					Ditto.
