Battery powered wireless ultraviolet Sensor mqtt/http/API interface cloud platform 4G/WiFi/LoRa/Ethernet port museum environmental monitoring system

As a professional provider of IoT data acquisition solutions and an expert in industrial IoT data acquisition, the editor of Shanghai Data Acquisition IOT Technology Co., Ltd， (daq-iot) hereby presents the following introduction, and sincerely welcomes discussions and exchanges. Supported Communication Interfaces: CAN, RS485, Mbus, 4–20mA, Profibus, CC-Link, HART, digital I/O, etc. Industrial Protocols: Modbus RTU/TCP, HJ212, IEC104, DLT645, DLMS, IEC61850, MQTT, etc. Mail:export@daq-iot.com

Shanghai DAQ-IoTNetwork Technology Co., LtdLow power wireless ultraviolet Sensor
Version: V 1.1

catalogue

1 Product Overview 32 Service Philosophy 53 Product Features 53.1 Ultraviolet Sensor Collection Characteristics 53.2 Electrical Characteristics 53.3 Communication Characteristics 63.4 Structural Characteristics 64 Product Core Advantages 65 Data Reporting Communication Protocol 75.1 Protocol Explanation 75.2 Protocol Customization 76 Precautions 9

Product Overview

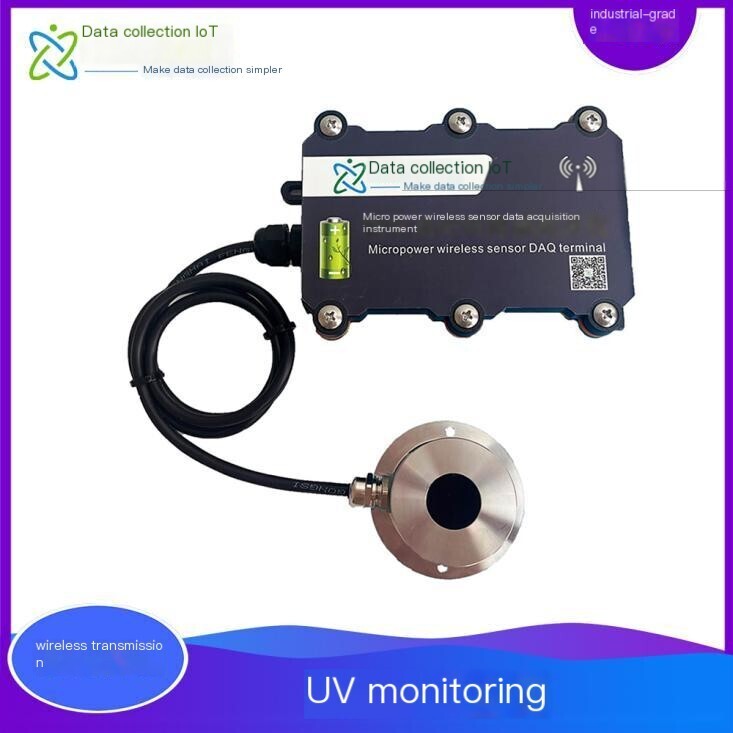

Low power wireless ultraviolet Sensor is a type of device launched by Shanghai DAQ-IoT Network Technology Co., Ltd., specifically designed to detect and quantify ultraviolet radiation in different bands. Its core function is to achieve precise perception, monitoring, and data output of ultraviolet radiation, and it is widely used in various fields such as industry, healthcare, environmental monitoring, and consumer electronics.

Sensor The terminal supports the use of 4G/LoRa/WiFi communication method, powered by 3.6V lithium battery, overcomes wireless communication obstruction caused by special on-site environment, greatly simplifies on-site deployment time and reduces construction costs. This terminal can also support 12V voltage input, reverse connection protection, high measurement accuracy, and easy installation.

modelFeature Description
DAQ-LP-UVLoRaDAQ-LP-UV4GLoRa/4G communication, powered by long-life lithium batteries, suitable for situations with low acquisition frequency and difficult external power supply.
DAQ-GP-UV4G4G communication, 220V AC/12V DC power supply, suitable for situations with high acquisition frequency or convenient external power supply. Because the device is set to be online for a long time by default, it can support remote configuration parameter debugging, and only needs to be installed and powered on on-site.
DAQ-GP-UVWiFiWiFi communication method

Service Philosophy

Our company solemnly promises:

You are not only purchasing products, but also providing meticulous and thoughtful technical support services！！！( =^_^= )

This product only requires ordinary workers to connect and install it on site! No debugging required!

We provide free remote guidance, remote configuration and debugging services, and send data to the user's designated cloud platform.

Free consultation service forIoTsolution!

Product Features

UV Sensor collection characteristics

Collection type: It can simultaneously collect the ultraviolet radiation intensity in the UVA (315-400nm) and UVC (200-280nm) bands, as well as the effective radiation intensity in specific bands of the ultraviolet lamp

Measurement range: UVA: 0-20000 μ W/cm ²; UVC：0~10000μW/cm²； UV lamp intensity: 0~50000 μ W/cm ²

Distance coefficient: For UV lamp monitoring scenarios, the distance coefficient is1:10(That is, for every 10 times increase in distance betweenSensorand the UV lamp, the theoretical attenuation of radiation intensity is 1/100 of the original. The device has a built-in distance compensation algorithm that can automatically correct the measurement value based on the actual installation distance.); Environmental UV monitoring scenarios have no fixed distance coefficient and support custom distance calibration

Measurement error: Under standard conditions (25 ℃, 50% RH, standard UV light source), the measurement error is ≤± 5% (@ 20%~80% range of full scale); Band cross interference error ≤± 2%; Long term drift error ≤ ± 3%/year; Additional error ≤ ± 2% in low temperature (-40 ℃) or high temperature (85 ℃) environments

Collection frequency: default once every 12 hours, supports remote configuration

Electrical Characteristics

Power supply method: Long life lithium battery power supply (optional DC power supply)

Standby current: 4.17uA

Standby power: 15.029uW

Communication characteristics

Wireless transmission method: 4G/LoRa/WiFi

Communication Protocol:MQTT/TCP/UDP/HTTP/SSL/ModBus RTU, Can customize other Protocol

Data forwarding: Any public network server

Positioning: Supports LBS base station positioning, making it convenient to query device location.

structural characteristics

Antenna type: Built in antenna (optional external antenna)

Material: PC/ABS/PMMA (shell)

Main protection level:IP65

Size: 122mm x 92mm x 42mm (length * width * height)

Distance measuring probe structure: non-contact type

Main installation method: wall mounted or screw fastened

Probe installation method: wall mounted or bracket

Core advantages of the product

  • Easy installation, quick deployment, helping the IoT project to land quickly
  • Support custom registration and heartbeat packages to facilitate platform differentiation of devices
  • Support any private IoT cloud platform and configuration software, providing data Protocol docking
  • Support Alibaba Cloud, Baidu Tiangong OneNet、 Mainstream cloud platforms such as Tencent Cloud
  • Support external multiple channels Sensor
  • Non invasive measurement that does not affect the normal operation of the equipment
  • Support remote configuration of parameters,FOTARemote upgrade to minimize personnel costs for on-site construction and maintenance

Data reporting communication Protocol

Protocol Explanation

Multiple push methods such as UDP/TCP/MQTT/HTTP require users to provide the public IP address of the cloud server when receiving data

And the port number.

Example of JSON format data message:

{"VoltageCur":376,"TmpWidth":254,"TimePeriod":254,"MinCntSet":1,"UVAIntensity":15680,"UVBIntensity":8920,"UVCIntensity":2350,"UVLampIntensity":45800,"TotalDose":1256,"IntData3":-9999,"IntData2":168,"IntData1":1,"InfoId":1,"ICCID":"1119205006447538","Extend2":16890,"Extend1":23}

Message parsing:

{

"BatVoltage":376, //Equipment power supply voltage

UVA intensity ": 15680,//UVA ultraviolet radiation intensity, unit: μ W/cm ²

UVB intensity ": 8920,//UVB ultraviolet radiation intensity

UVC intensity: 2350,//UVC ultraviolet radiation intensity

ID ":" 860344048491162 "//Device ID

}

Protocol Customization

If you need to customize other communication Protocol, you can contact the business personnel for communication.

Precautions

  1. This product comes with a default built-in IoT SIM card at the factory, which is free for the first year. Starting from the following year, the data fee is approximately 20 yuan per year, including free technical support and lifetime maintenance fees. If you need to use your own SIM card, please inform us in advance.
