Breaking through the limitations of Modbus bus, two master and one slave communication module for industrial multi system data sharing

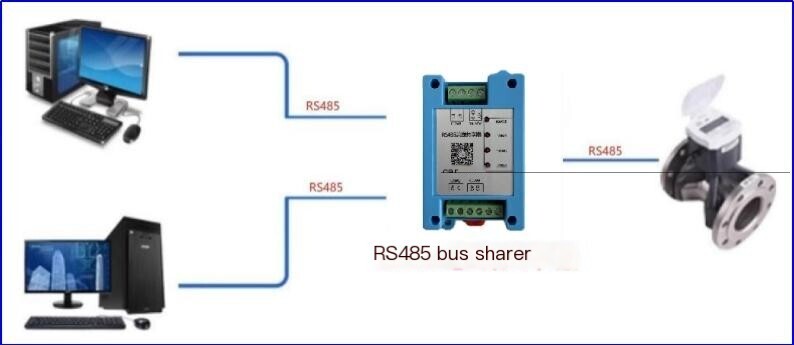

routine Modbus RTU For half duplexCommunication ProtocolOnly supports single master station docking with slave stations, industrial sites PLCWhen multiple devices such as data acquisition instruments and monitoring systems simultaneously read the same instrument, bus conflicts and communication disorders are prone to occur. This two master and one slave module is designed for dual master shared slave scenarios, providing a one-stop solution to the pain points of concurrent access for multiple devices.

http://weixin.qq.com/r/U0gPF_XEorjdraF09x1B (QR code automatic recognition)

The module relies on multiple core mechanisms for stable operation: built-indata cachingProxy, pre stored slaveregisterData, dual master stations can read cache to avoid bus contention; collocationLogical Token ArbitrationAccurately distinguish between two main station commands, return the response data to the original path, and prevent signal confusion. The device is compatible with two communication modes, Hardware time-sharing interlock achieves orderly transparent transmission, and also supports dual master synchronous reading of data without interfering with each other; Internal registers complete data mapping, read and write are non blocking.

In response to writing instruction conflicts, the module automatically queues for serial issuance; Dual communication port independent configurationBaud rateData format, compatible with new and old devices with different speeds. Engineering use can achieve business separation, with one main station responsible for PLC Real-time control and the other carrying SCADA Low frequency acquisition, non interfering with each other.

Widely adaptable to multiple industry scenarios:environmental protection industryRealize synchronous reading of water quality and flow meters between data acquisition instruments and PLC;New Energy PowerBalancing local monitoring and remote scheduling; Building self-control HMI Touch screenBMS Shared air conditioning in the backgroundpower meterThe industrial production line completes the control of PLC andData Analytics systemData sharing significantly reducesequipment modificationCost and simplified on-site wiring are practical for Modbus multi master communication solution.
