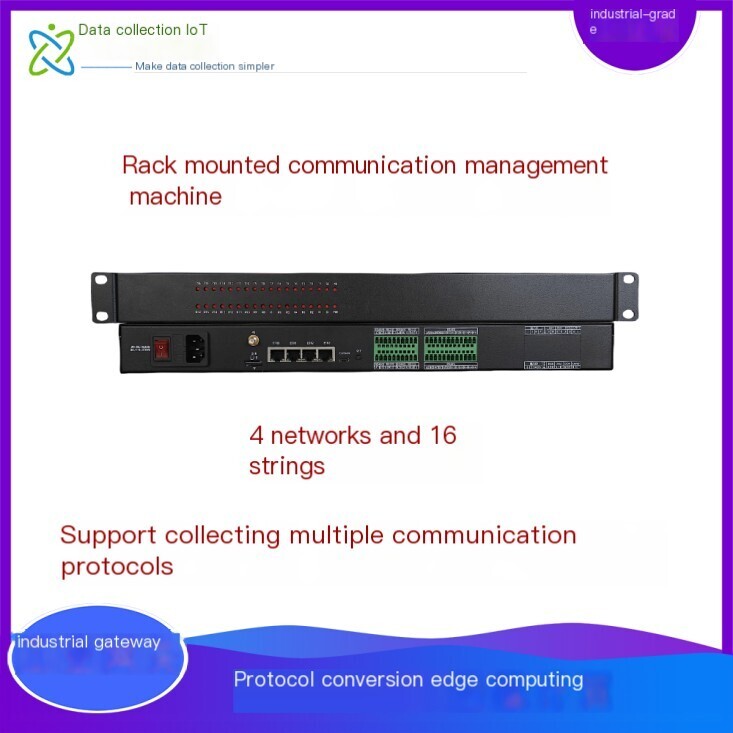

Building Energy Monitoring System Data Acquisition Gateway - Smart Energy Management Building Energy Efficiency

As a professional provider of IoT data acquisition solutions and an expert in industrial IoT data acquisition, the editor of Shanghai Data Acquisition IOT Technology Co., Ltd， (daq-iot) hereby presents the following introduction, and sincerely welcomes discussions and exchanges. Supported Communication Interfaces: CAN, RS485, Mbus, 4–20mA, Profibus, CC-Link, HART, digital I/O, etc. Industrial Protocols: Modbus RTU/TCP, HJ212, IEC104, DLT645, DLMS, IEC61850, MQTT, etc. Mail:export@daq-iot.com

asIoTData Acquisition solution Professional provider, data acquisitionIoTEditor daq iot Here is an introduction to the following content, and we sincerely welcome everyone to discuss and exchange ideas.

As a professional provider of IoT data collection solutions, daq-iot, the data acquisition and IoT editor, will introduce the following content here and sincerely welcome everyone to discuss and communicate.

Data upload

Data upload address port: http://www.daq-iot.com:8033

1. The project implementation party should self review the consistency between the energy consumption data collected by each monitoring branch and the actual load, submit a data verification table, and ensure that the measurement deviation is within a reasonable range;

2. The energy consumption data collected by each monitoring branch is consistent with the direct reading data of the energy consumption metering device. The uploaded data received by the monitoring center should be consistent with the original data collected on site. And the number of raw data received should meet the requirements of formula (1).

N

24

f

n

1. ——In the formula: N is the total number of raw data that the system should upload per day;

F is the frequency of data upload, unit: times/hour;

N is the total number of measurement points in the system;

3. To ensure the authenticity, reliability, and stability of data uploading,energy consumption dataThe energy consumption data should be uploaded directly from the data collector (Gateway), and it is not supported to export energy consumption data from the building monitoring system or power monitoring system database to the monitoring center. If the energy consumption data is uploaded using theData Acquisitiondevice of the power monitoring system, theData Acquisitiondevice must have two data transmission channels and be able to ensure the normal operation of both systems simultaneously.

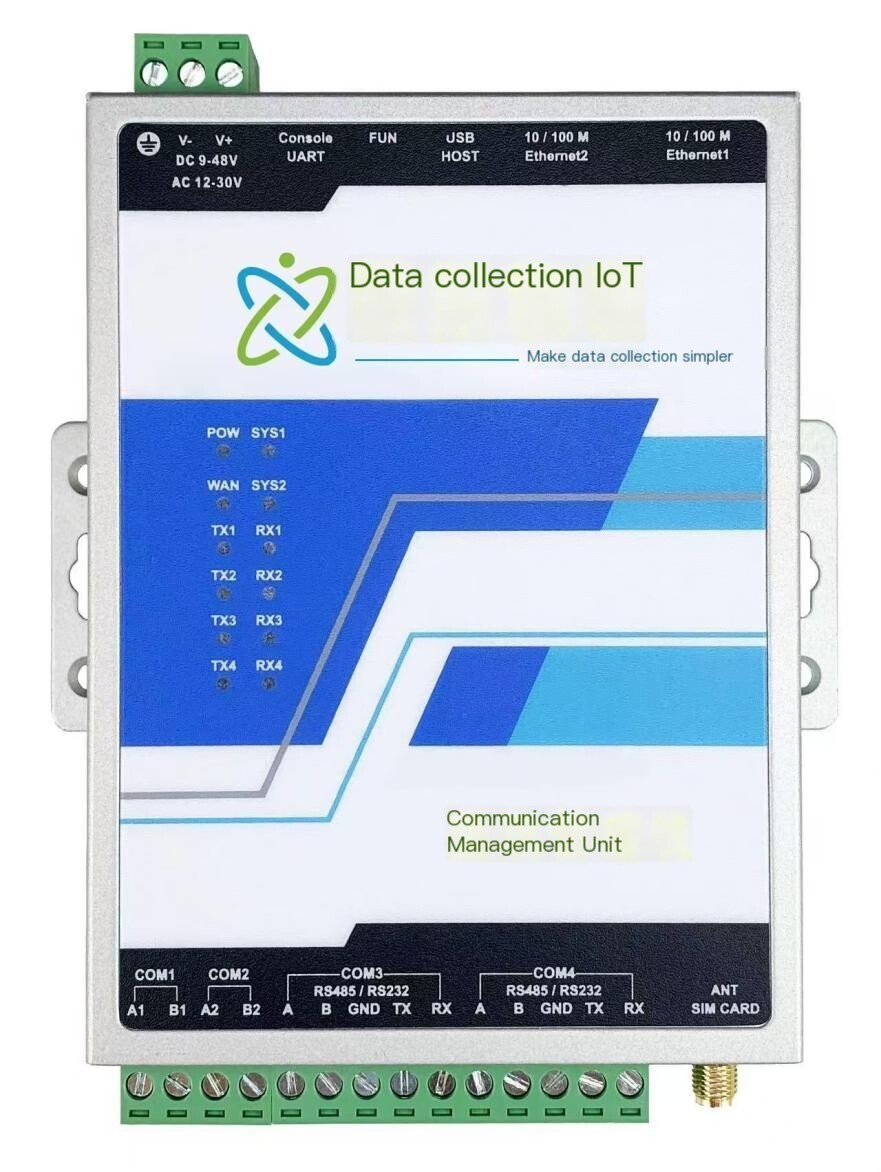

Appendix 1Data Acquisition Deviceperformance metrics

parameter	indicator
collection interface	At least 2 channels are available RS-485 interface
Collecting communication speed	The maximum speed is not less than 9600bps
Collect communication Protocol	Supports DL/T645-1997, CJ/T188-2004GB/T19582-2008Each interface is independently configurable
Support the number of measuring devices	No less than 64 units
sampling cycle	According to data center commands or active scheduled collection, the timing cycle can be configured from 10 minutes to 1 hour
Data processing method	Analyze Protocol, perform addition, subtraction, and multiplication operations, and add additional information
storage capacity	Not less than 32MB
Remote transmission interface	At least one wired or wireless interface
Remote transmission cycle	According to the collection cycle Real-time remote transmission
Number of supported data servers	At least 2
Configure/maintain interfaces	Having a local configuration/maintenance interface
Network function	Receive commands, report faults, encrypt data, resume breakpoint transmission, DNS resolution
power	Less than 10W

Appendix 2 Collector Communication Protocol

1. Data encryption
   TcpProtocol
   Use AES encryption algorithmEncrypt XML packets (encrypt all data) with a key length of 128 bits. The encryption key is stored in the local file system of the data center and Data Acquisition device.
   Encryption key: aesmodeaes.mode
   Encryption mode: ECB
   Filling method: PKCS7-PKS5Padding
   Character set: UTF-8
   Binary: Hexadecimal

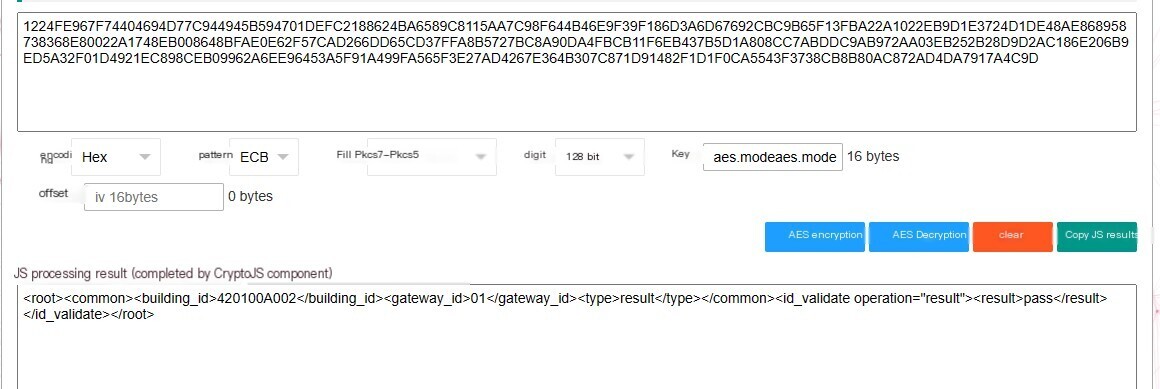

   Encryption/Decryption Test Address:https://www.mklab.cn/utils/aes Test configuration as shown in the figure


1. XML data format for data transmission
   2.1 Authentication Data Packet (id_malidate)
   <root>
   <! -- General Part -->
   <!--
   Building_id: Building number
   Gateway_id: Collector ID
   Type: The type of authentication packet
   --><common>
   <building_id>XXXXXXXXXX</building_id >
   <gateway_id>XX</gateway_id>
   <type>One of the following two types of operations</type>
   </common>
   <! -- Authentication -->
   <! -- There are 2 types of operations
   Request: Collector requests authentication (this packet is sent by the collector to the server)
   Result: The server sends the verification result, and the result sub element is valid (this data packet is sent by the server to the collector)
   -->
   <id_validate operation="request/result">
   <result>pass/fail</result>
   </id_validate>
   </root>
   2.2 Heartbeat/Timing Data Packet (Heart_teat)
   <root>
   <! -- General Part -->
   <!—
   Building_id: Building number
   Gateway_id: Collector ID
   Type: The type of heartbeat/timing packet
   -->
   <common>
   <building_id>XXXXXXXXXX</building_id > <gateway_id>XX</gateway_id >
   <type>One of the following two types of operations</type>
   </common>
   <! -- Heartbeat/Timing ->
   <! -- There are 2 types of operations
   Notify: The collector regularly sends survival notifications to the server, without the need for child elements (once every minute, set offline if not sent for five minutes, and close the link) (this data packet is sent by the collector to the server)
   Time: After receiving the survival notification, the server sends the timing information. At this time, the sub element time is valid, and the collector's time needs to be based on the server time (this data packet is sent by the server to the collector)
   -->
   <heart_beat operation="notify/time">
   <time>yyyyMMddHHmmss</time>
   </heart_beat>
   </root>
   2.3 Energy consumption remote transmission data packet
   <root>
   <! -- General Part -->
   <!—
   Building_id: Building number
   Gateway_id: Collector ID
   Type: Type of energy consumption remote transmission data packet
   -->
   <common>
   <building_id>XXXXXXXXXX</building_id>
   <gateway_id>XX</gateway_id>
   <type>One of the following two types of operations</type>
   </common>
   <! -- Energy consumption remote transmission -->
   <! -- There are 4 types of operations
   Report: Energy consumption data regularly reported by the collector (this data packet is sent by the collector to the server)
   Continuous check: After the data packet is received, the server responds to the uploaded data with one response for each piece of data, without the need for child elements (this data packet is sent by the server to the collector)
   There are 5 types of elements
   Sequence element: The sequence number of the data sent by the collector to the server (the collector guarantees uniqueness, with a length not exceeding 20 digits)
   Parser element: Whether the data sent to the server has been parsed by the collector (pass yes)
   Time element: Data Acquisition Time
   Meter element: Equipment number of the measuring device
   Function element: The specific acquisition function of each measuring device, with the following three types
   Attribute
   ID attribute: Data Acquisition function number of the measuring device
   1. Multi functional energy meter:
   1: Total active energy
   2: A-phase current
   3: B-phase current
   4: C-phase current
   5: A-phase voltage
   6: B-phase voltage
   7: C-phase voltage
   8: Total active power
   9: Total power factor
   Encoding Instructions
   Build_i (Building Code) -10 digits, unique to each building, assigned by the higher-level platform
   Gateway_i (Collector ID) -2 digits, unique to each collector, customized by the manufacturer
   Energy consumption coding attribute: Energy consumption data classification/item coding is shown in the table below
   (Note: Coding is unique under the same collector, and the same coding energy consumption data is summed and uploaded)
   Energy consumption coding instructions

1	2	3	4	5
Energy consumption classification code	Sub item energy consumption code	Electricity coding	Serial number (0-9&A-Z)
X X	X	X	X

Energy consumption classification code

Energy consumption classification	Energy consumption classification code
electricity	01
water	02
Gas (natural gas or coal gas)	03
Centralized heating capacity	04
Centralized cooling capacity	05
other energy sources	06
coal	07
liquefied petroleum gas	08
Artificial gas	09
gasoline	10
kerosene	11
diesel	12
renewable energy	13

Sub item energy consumption code

Sub item energy consumption	Sub item energy consumption code
Electricity consumption for lighting sockets	A
Air conditioning electricity consumption	B
Power consumption	C
Special electricity usage	D
Total electricity consumption	E

Use a code meter

Sub item energy consumption	electricity consumer name	Using electrical codes	Example (last x takes 0-9&A-Z)
01A	Electricity consumption for lighting sockets	0	01A0x
01A	Lighting and sockets	1	01A1x
01A	Corridor and Emergency Response	2	01A2x
01A	outdoor lighting	3	01A3x
01B	Air conditioning electricity consumption	4	01A4x
01B	Cold and hot stations	5	01A5x
01B	cryogenic pump	6	01A6x
01B	cooling pump	7	01A7x
01B	cold machine	8	01A8x
01B	cooling tower	9	01A9x
01B	hot water circulating pump	A	01AAx
01B	electric boiler	B	01ABx
01B	Air conditioning terminal	C	01ACx
01B	All air unit	D	01ADx
01B	Fresh Air Handling Unit	E	01AEx
01B	exhaust fan unit	F	01AFx
01C	Power consumption	0	01C0x
01C	elevator	1	01C1x
01C	water pump	2	01C2x
01C	ventilator	3	01C3x
01C	Electric water heater	4	01C4x
01D	Other electricity consumption	0	01D0x
01D	Information Center	1	01D1x
01D	kitchen equipment	2	01D2x
01D	special equipment	3	01D3x
01E	Main circuit electricity consumption	0	01E0x
01E	Main and backup circuit power consumption	1	01E1x

Error attribute: The status code for this feature indicating an error, 0 indicates no error, and 1 indicates a fault
-->
<data operation="report/continuous_ack">
<sequence>XXXXXXXX</sequence>
<parser>yes/no</parser>
<time>yyyyMMddHHmmss</time>
<meter id="1">
<function id="1" coding="XXXX" error="XX">Data value/function>
<function id="2" coding="XXXX" error="XX">Data value/function>
</meter>
<meter id="2">
<function id="1" coding="XXXX" error="XX">Data value/function>
<function id="2" coding="XXXX" error="XX">Data value/function>
</meter>
</data>
</root>
2.4 Configuration Information Package (config)
This data packet will be returned to the collector by the server simultaneously with the authentication information and configuration information during the authentication process. If the configuration information is modified, the server will
It will also send configuration information to the collector.
<root>
<! -- General Part -->
<!—
Building_id: Building number
Gateway_id: Collector ID
Type: Configure the type of information packet
-->
<common>
<building_id>XXXXXXXXXX</building_id >
<gateway_id>XX</gateway_id >
<type>One of the two types of operations</type>
</common>
<! -- Configuration Information -->
<! -- There are 2 types of operations
Period: represents the server's configuration of the collector's collection period, and the period sub element is valid (this data packet is sent by the server to the collector)
Period_ack: represents the response of the collector to the server's collection cycle configuration information (this data packet is sent by the collector to the server)
-->
<config operation="period/period_ack">
<period>15</period>
</config>
</root>

1. Data transmission format
   Byte length of data packet (4 bytes)+data packet (encrypted data) Example: Full data packet format: 132<root>Data</root>
   132: Represents the byte length of "<root>data</root>", which is hexadecimal (4 bytes). <root>Data</root>: represents encrypted data
2. Encryption case:
   Cipher text:
   000001801224FE967F74404694D77C944945B594701DEFC2188624BA6589C8115AA7C98F644B46E9F39F186D3A6D67692CBC9B65F13FBA22A1022EB9D1E3724D1DE48AE868958738368E80022A1748EB008648BFAE0E62F57CAD266DD65CD37FFA8B5727BC8A90DA4FBCB11F6EB437B5D1A808CC7ABDDC9AB972AA03EB252B28D9D2AC186E206B9ED5A32F01D4921EC898CEB09962A6EE96453A5F91A499FA565F3E27AD4267E364B307C871D91482F1D1F0CA5543F3738CB8B80AC872AD4DA7917A4C9D
   among which 00000180 Represents the length of the ciphertext (not encrypted), and the following data is a complete ciphertext packet.
   Clear text:
   <root><common><building_id>420100A002</building_id><gateway_id >01</gateway_id><type>result</type></common><id_validate operation="result"><result>pass</result></id_validate></root>
3. Message example:

---------Register---------------

Collector sends:

<root><common><building_id>500229H001</building_id><gateway_id>01</gateway_id><type>request</type></common></root>

Server response:

<root><common><building_id>500229H001</building_id><gateway_id>01</gateway_id><type>result</type></common><id_validate operation="result"><result>pass</result></id_validate></root>

-----------Data transmission---------

Collector sends:

<root><common><building_id>500229H001</building_id><gateway_id>01</gateway_id><type>report</type></common><data operation="report"><sequence>00020221017152341570</sequence><parser>yes</parser><time>20221017152341</time><meter id="1"><function id="1" coding="01A00" error="0" >1</function><function id="1" coding="01B00" error="0" >2</function><function id="1" coding="01C00" error="0" >3</function><function id="1" coding="01D00" error="0" >4</function></meter></data></root>

Server response:

<root><common><building_id>500229H002</building_id><gateway_id>01</gateway_id><type>continuous_ack</type></common></root>
