Collect PT100 temperature transmitter modbus Protocol data transfer timing Real-time data inluxdb

As a professional provider of IoT data acquisition solutions and an expert in industrial IoT data acquisition, the editor of Shanghai Data Acquisition IOT Technology Co., Ltd， (daq-iot) hereby presents the following introduction, and sincerely welcomes discussions and exchanges. Supported Communication Interfaces: CAN, RS485, Mbus, 4–20mA, Profibus, CC-Link, HART, digital I/O, etc. Industrial Protocols: Modbus RTU/TCP, HJ212, IEC104, DLT645, DLMS, IEC61850, MQTT, etc. Mail:export@daq-iot.com

As a professional provider of IoT, Data Acquisition, and solution, Shucai IoTEditor daq iotHere is an introduction to the following content, and we sincerely welcome everyone to discuss and exchange ideas.

As a professional provider of IoT data collection solutions, daq-iot, the data acquisition and IoT editor, will introduce the following content here and sincerely welcome everyone to discuss and communicate.

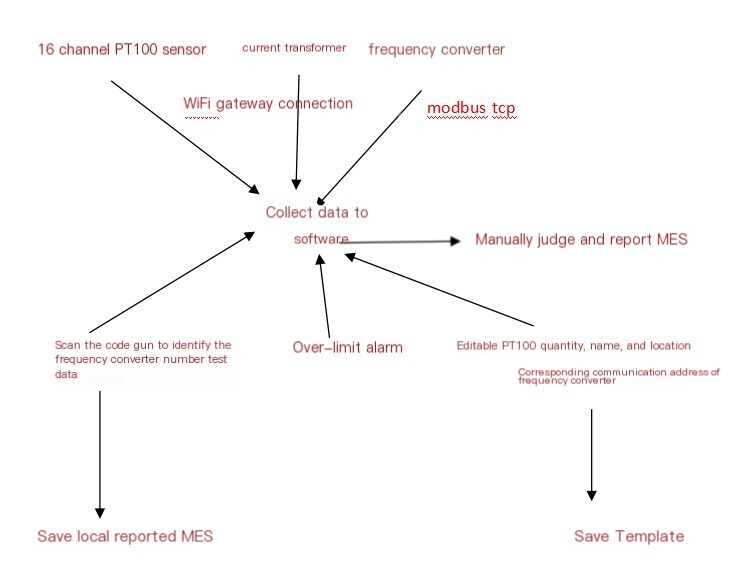

1. Route 16PT100Data Acquisition， Need to adapt to Hardware, pt100 probe requires insulation.

Is there PT100 available on site? Does the adaptation of Hardware require Gateway or what?

2. We need to collect output current signals, with an accuracy of 1% within the range of 0-700A (using a current loop that can be opened and closed).

Do we need a 485 interface with a range of 0 to 700A and an opening for a current transformer

3. Need to collectfrequency converterInternal data such as bus voltage, current, speed, torque, temperature, humidity and other signals are communicated throughModbus TCP。

Need to provide frequency converter Modbus TCP Protocol

4. Each model corresponds to a different number, position, and name of PT100 probes, and the communication address corresponding to each model of frequency converter is different. It needs to be able to save templates and call them at any time.

5. Need to add a barcode scanner to scan the device number and model. Test data can be saved locally and uploadedMES system。

6. We need to build a software Hardware based on the on-site testing environment, which should be simple, beautiful, and easy to operate on site.

Do all collected data need to be integrated with the MES system
