Farmland Informatization - Online Monitoring System Management Platform for Well Equipment Operation - Three phase Voltage and Current Start stop Time Electricity Consumption

As a professional provider of IoT data acquisition solutions and an expert in industrial IoT data acquisition, the editor of Shanghai Data Acquisition IOT Technology Co., Ltd， (daq-iot) hereby presents the following introduction, and sincerely welcomes discussions and exchanges. Supported Communication Interfaces: CAN, RS485, Mbus, 4–20mA, Profibus, CC-Link, HART, digital I/O, etc. Industrial Protocols: Modbus RTU/TCP, HJ212, IEC104, DLT645, DLMS, IEC61850, MQTT, etc. Mail:export@daq-iot.com

asIoTData Acquisition solution professional provider, industrial Data Acquisition expert (professional account), Shanghai DAQ-IoT technology editor daq iot would like to introduce the following content here, and sincerely welcome everyone to discuss and exchange ideas.

As a professional provider of IoT data acquisition solutions and an expert (specialist) in industrial data acquisition, the editor from Shanghai DAQ-IoT Technology Co., Ltd. (daq-iot) introduces the following content here and sincerely welcomes everyone to discuss and exchange ideas.

The agricultural well equipment operation monitoring system launched by Shanghai DAQ-IoT Network Technology relies on IoT, Big Data and remote measurement and control technology, and is compatible withhigh-standard farmlandTo meet the demand for information technology construction, achieve intelligent control of well equipment full lifecycle, solve the pain points of traditional well decentralized management, low efficiency, and lagging fault diagnosis, provide technical support for fine management of farmland irrigation, and comply with the relevant planning requirements of the Ministry of Water Resources for information technology construction.

1. Real-time Monitoring: Continuously collect and remotely monitor key operating parameters such as three-phase voltage, three-phase current, start stop time, and power consumption for each well. 2. Fault alarm: The system automatically diagnoses the operating status and provides automatic warning and information push for faults such as abnormal voltage and current, and long-term idle equipment. 3. Platform management: The geographical location, identity information, andReal-timedata of all wells are uniformly aggregated into the county-level high standard farmland intelligent management platform, achieving "one map overview and unified scheduling".

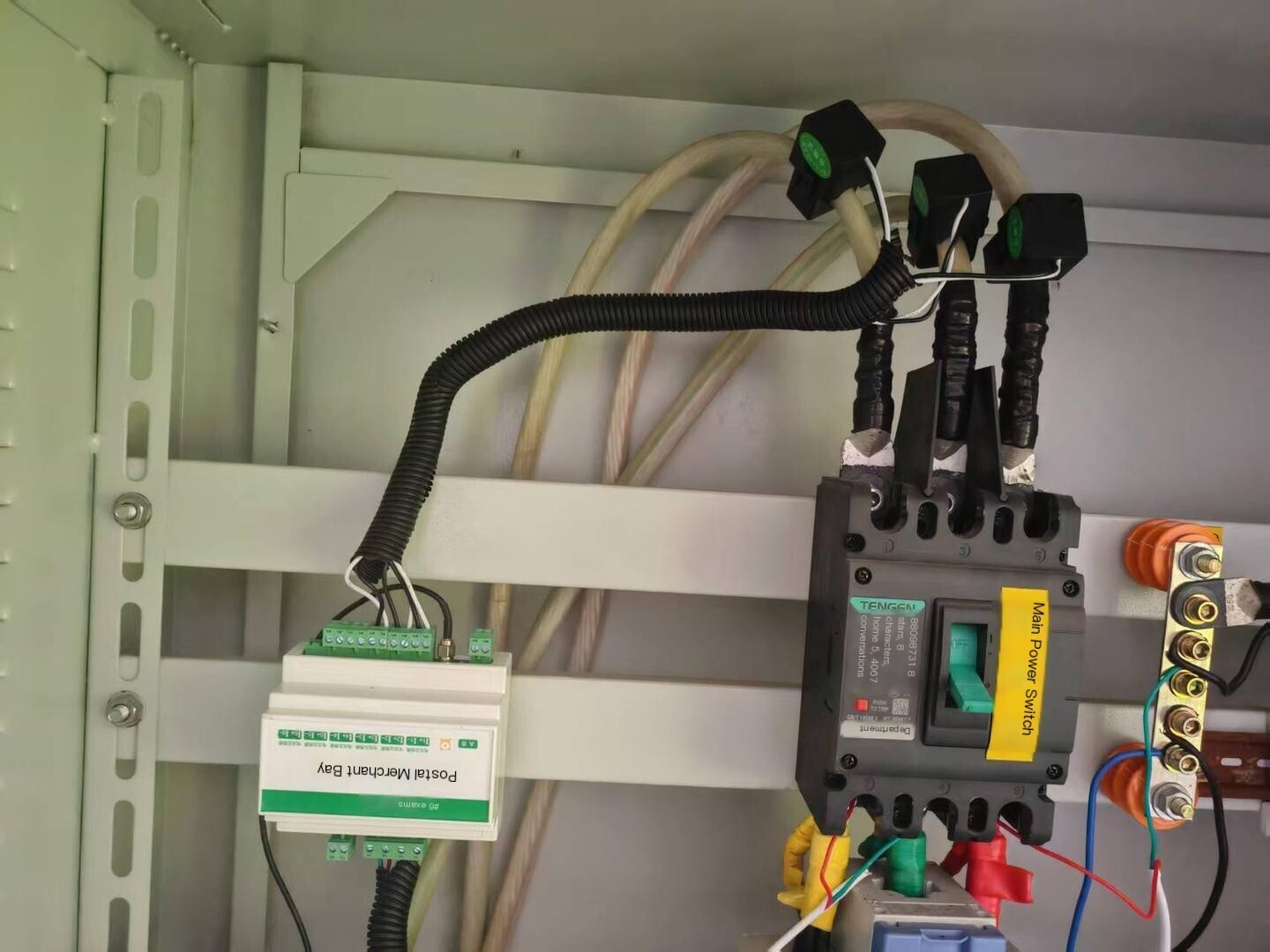

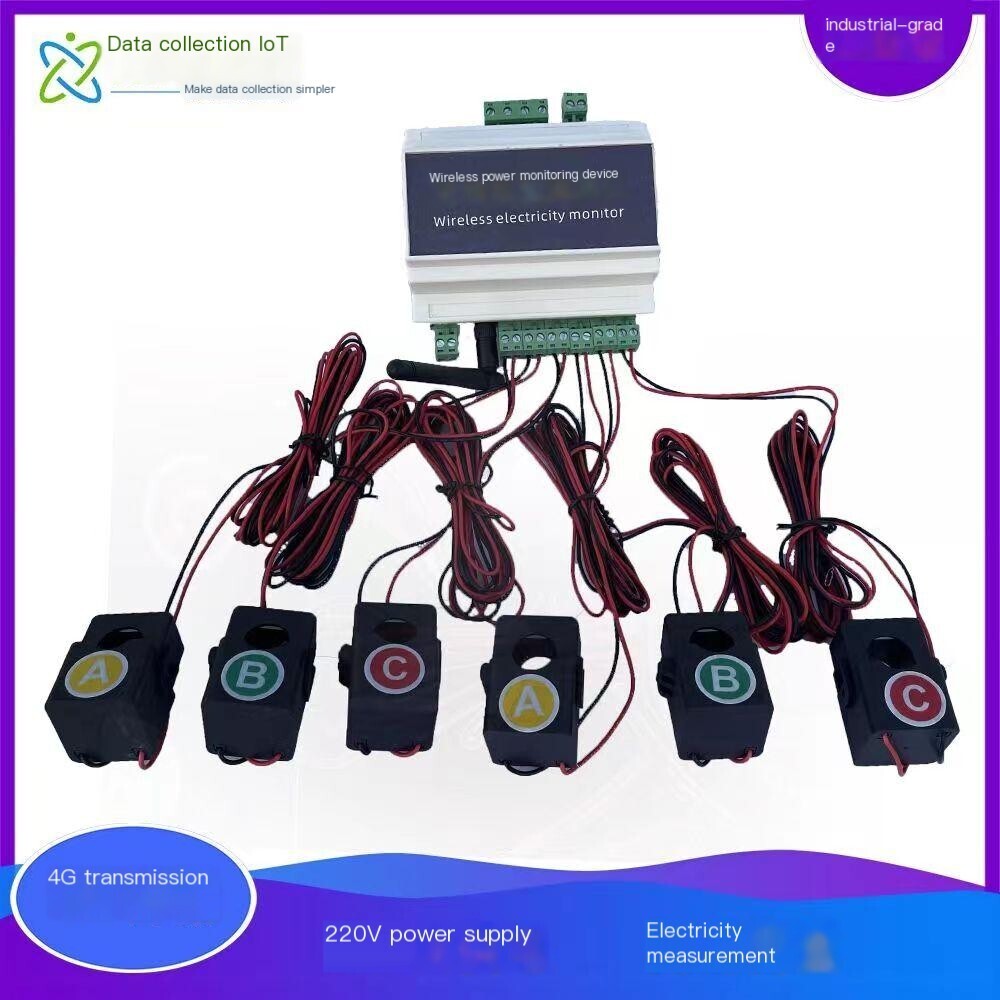

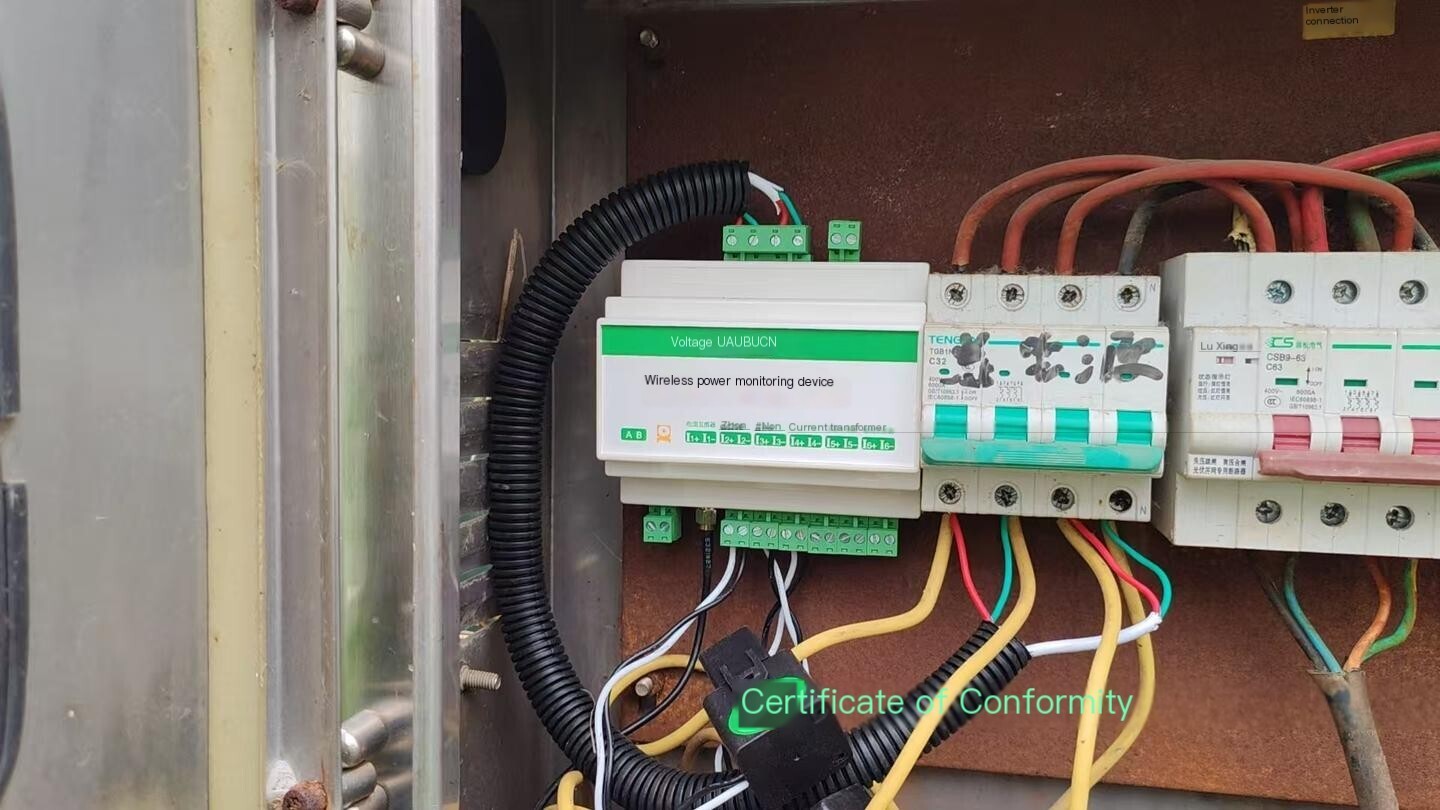

TheReal-timemonitoring module adopts industrial grade intelligent acquisition terminals and high-precisionSensorto implement millisecond level uninterrupted acquisition of key operating parameters such as three-phase voltage, three-phase current, start stop time, and power consumption for each well. The sampling accuracy reaches 0.2 level, which can effectively avoid acquisition errors caused by voltage and current fluctuations. Data passes throughGPRS wireless transmission technologyReal-time is uploaded to the monitoring terminal and supports offline storage function. It will not be lost in case of power failure and can retain historical data for no less than 1 year. It enables parameter Real-time viewing, historical tracing, and trend analysis, providing accurate data support for the evaluation of well operation status.

The fault alarm module is embedded with intelligent diagnostic algorithms, which automatically identify abnormal working conditions such as voltage and current overload, undervoltage, three-phase imbalance, and long-term idle equipment by comparing preset parameter thresholds with data collected byReal-time, triggering a graded warning mechanism. Warning information can be synchronously pushed to management personnel through multiple channels such as platform pop ups, mobile text messages, and APP push notifications, clarifying the type, location, and warning level of faults, achieving "early detection, early diagnosis, and early disposal", reducing equipment downtime and maintenance costs, and preventing safety hazards caused by equipment abnormalities.

The platform management module builds a county-level high standard intelligent management center for farmland, integrating the geographical location, equipment identity information, and operational data of all wells, relying onGIS Geographic Information SystemBuild a management model of "one map of farmland" to achieve a "one map overview" of well distribution. Management personnel can complete remote scheduling, parameter remote setting, equipment ledger management and other operations through the platform, achieving unified control and efficient allocation of well resources, assisting in the fine utilization of water resources, and promoting the digital and intelligent transformation of farmland irrigation management.
