Intelligent data terminal DAQOIT

As a professional provider of IoT data acquisition solutions and an expert in industrial IoT data acquisition, the editor of Shanghai Data Acquisition IOT Technology Co., Ltd， (daq-iot) hereby presents the following introduction, and sincerely welcomes discussions and exchanges. Supported Communication Interfaces: CAN, RS485, Mbus, 4–20mA, Profibus, CC-Link, HART, digital I/O, etc. Industrial Protocols: Modbus RTU/TCP, HJ212, IEC104, DLT645, DLMS, IEC61850, MQTT, etc. Mail:export@daq-iot.com


Category parameters

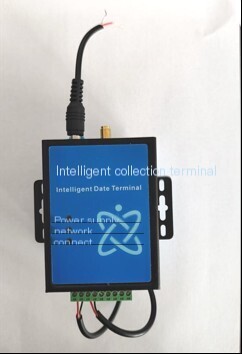

Model SC-GP-GWRTU

name Intelligent collection terminal

Transmission format: 4G for all networks (China Telecom, China Unicom, China Mobile, etc., supporting Cat.4 and Cat.1)

Downward support Protocol Belt scale proprietary ProtocolState Grid Protocol (DL/T614/645/698.45), EDMI Protocol,CJ188Protocol， HJ212 Protocol and others

Power supply range: 5V~30V, (power interface: DC5.5 * 2.1mm female socket, positive inside and negative outside)

The average working current is 21mA to 40mA, with a maximum of 54mA (12V)

The indicator light has power status indicator light, network status indicator light, and server connection indicator light

IoT Card 2FF Specification (Traditional Large Card)

USB interface TYPE-C interface, USB 2.0 driver support: Windows 7, Windows 8/8.1, Windows 10

UART interface Serial port 1: RS485 terminal interface, baud rate 1200-460800 (bps)

Upstream communication Protocol MQTT/TCP/UDP/HTTP/SSL/ModBus RTU, can customize other Protocol

Data forwarding to any public network server, supports remote parameter configuration, FOTA remote upgrade.

Heartbeat package supports custom heartbeat packages, which can be set as signal strength.

The registration package supports custom registration packages, which can be set as IMEI codes.

The positioning function supports base station positioning

Main body size 83 * 85 * 25

Working environment temperature -30 ° C~75 ° C, humidity 0~95%

Working power consumption is less than 5W

Antenna interface and type SMA external screw inner hole, suction cup or rubber rod external antenna

Weight 200g
