3.6V lithium battery powered low-power pressure sensor transmitter RS485 interface modbus communicationProtocol

As a professional provider of IoT data acquisition solutions and an expert in industrial IoT data acquisition, the editor of Shanghai Data Acquisition IOT Technology Co., Ltd， (daq-iot) hereby presents the following introduction, and sincerely welcomes discussions and exchanges. Supported Communication Interfaces: CAN, RS485, Mbus, 4–20mA, Profibus, CC-Link, HART, digital I/O, etc. Industrial Protocols: Modbus RTU/TCP, HJ212, IEC104, DLT645, DLMS, IEC61850, MQTT, etc. Mail:export@daq-iot.com

As a professional provider of IoT, Data Acquisition, and solution, Daq iot, the editor of IoT, would like to introduce the following content and sincerely welcome everyone to discuss and exchange ideas.

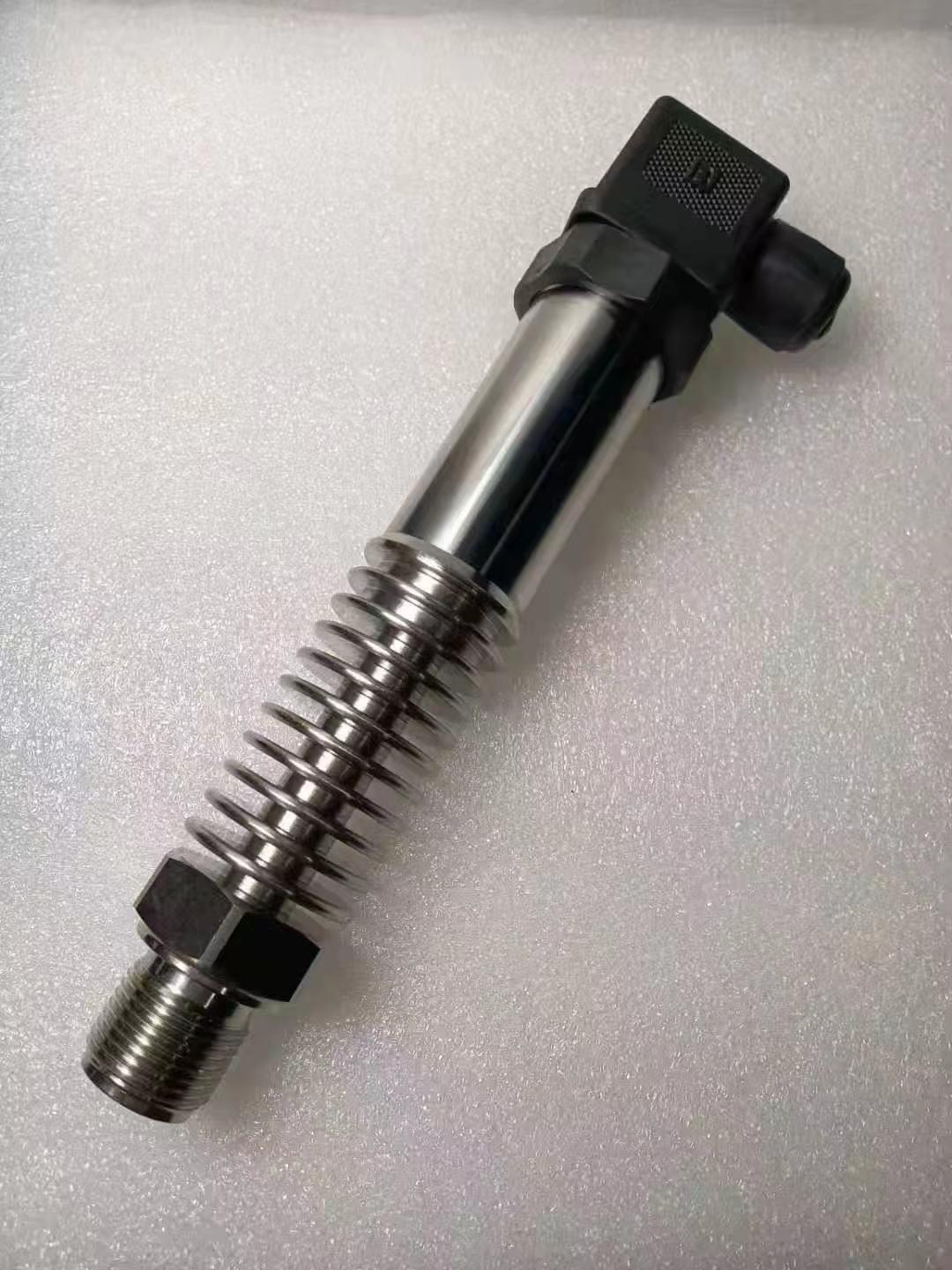

This product adoptsDiffused silicon pressure coreAs a sensitive component, chooseAll digital circuitThe overall performance is stable and reliable, capable of long-distance signal transmission. All stainless steel structure, easy to install. Having extremely highanti-interferenceAnd impact resistance, suitable for industries such as gas, hydraulic, environmental protection, medical, etc.


Test medium: liquid or gas compatible with the material

Ø Range: Any interval within -0.1-250MPa

Ø Accuracy level: 0.1% FS, 0.25% FS, 0.5% FS

Stability: ± 0.25% FS/year, ± 0.5% FS/year

Output signal: 4~20mA, 0~10VRS485 communication

Ø working voltage3.6V~12V DC (calibration: 24V ± 5%, ripple<1%)

Ø Power supply impact: less than 0.01%/V of the output range

Ø Working temperature: -20~80 ℃

Ø Compensation temperature: -20~80 ℃

Temperature impact: ± 1.55% FS/year, ± 3.0% FS/year

Ø overload capacity：300%

Threaded interface: M20 * 1.5, G1/2, 1/2NPT, etc

load resistor：4～20mA
