Low power solar powered wireless RTU collectorDownward support for timed acquisition of various 485 interfaces Sensor, external output of 5V/12V voltage, upstream support for variousIoT Cloud PlatformAccess.

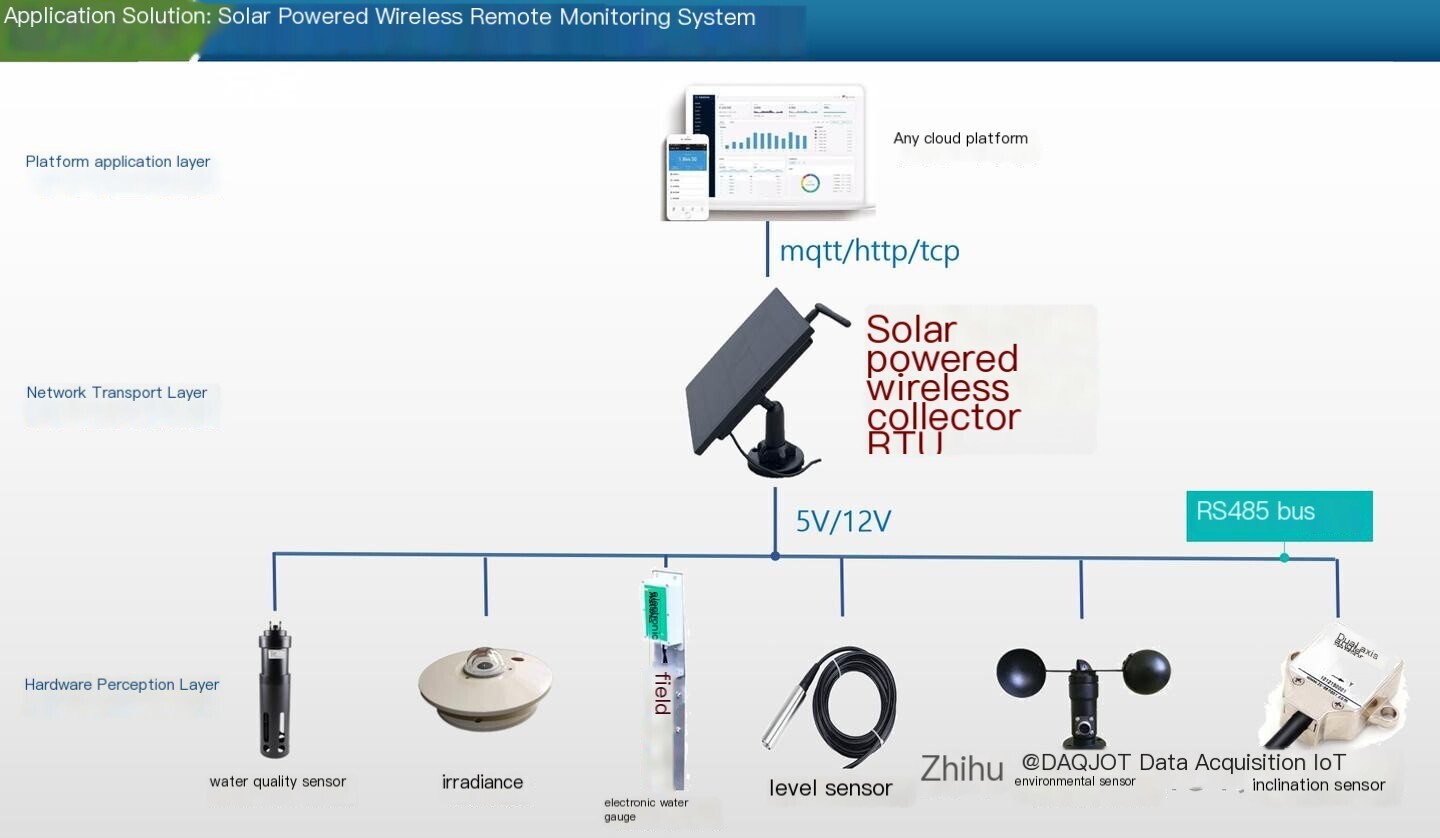

DAQ-SP-X4GSensor, a solar powered wireless series launched byShanghai DAQ-IoTTechnology, supports 4G wireless communication by default and can remotely monitor and connect with various wireless systemsRS485 communicationSensoror probes, such as immersion liquid levelSensorTemperature and humidity SensorIlluminance SensorWind speed and direction SensorTilt angle Sensor, electronic water gauge and other outdoor scenes Sensor.

The product is equipped with a rechargeable lithium battery, outdoor rainproof, and comes with a versatile bracket for easy outdoor installation. The built-in 4G IoT SIM card can directly access the IoT cloud platform and view data information directly on mobile WeChat or websites. Suitable for various remote monitoring scenarios where outdoor power supply is inconvenient.

1 Service Philosophy

Our company solemnly promises:

You are not only purchasing products, but also providing meticulous and thoughtful technical support services！！！( =^_^= )

This product only requires ordinary workers to connect and install it on site! No debugging required!

We provide free remote guidance, remote configuration and debugging services, and send data to the user's designated cloud platform.

Free consultation service forIoTsolution!

2 Product characteristic parameters

2.1 Collection characteristics

Acquisition interface: RS485

External output voltage: 5V/12V @ 1A

2.2 Electrical Characteristics

Solar panel power: 4.2W

Device power consumption:<=3W (default)

Battery capacity: 4Ah (expandable)

2.3 Communication characteristics

Support 4G network

Customizable WiFi/LoRaWaiting for other communication methods

2.4 structural characteristics

Overall dimensions of the host: 175 × 165 × 45mm

Protection level: IP65

2.5 storage environment

Temperature range: -20 ℃ to 60 ℃

3 Core advantages of the product

u Self powered, usingclean energyRealize 'zero carbon'

u Easy installation, quick deployment, helping the IoT project to land quickly

u Support custom registration packages andheartbeat packetFacilitate platform differentiation of devices.

u Support any IoT cloud platform and configuration software, provide data Protocol docking

u Support Alibaba CloudBaidu Tiangong、OneNet、Tencent CloudMainstream cloud platforms

u Support external multiple channels Sensor

u Support remote parameter configuration and FOTA remote upgrade, minimizing personnel costs for on-site construction and maintenance to the greatest extent possible

4 Communication Protocol

The data upload method supports mainstream communication methods such as RS485, TCP, UDP, HTTP, MQTT, etc. The data format can bemodbusOr integrate with third-party platforms through JSON.

4.1 data reportingExplanation of Communication Protocol Analysis

Example of parsing JSON format data message:

{

"tempeature":18.5, //Temperature ° C

"wind":4.2, //Wind speed m/s

"liquid level":8, //Liquid level depth m

"illumination":476, //Illuminance value Lux

"energy":0, //Electricity consumption 6 kWh

"power":0, //Power 4 W

"id":"861658062222974", //Device ID

}
