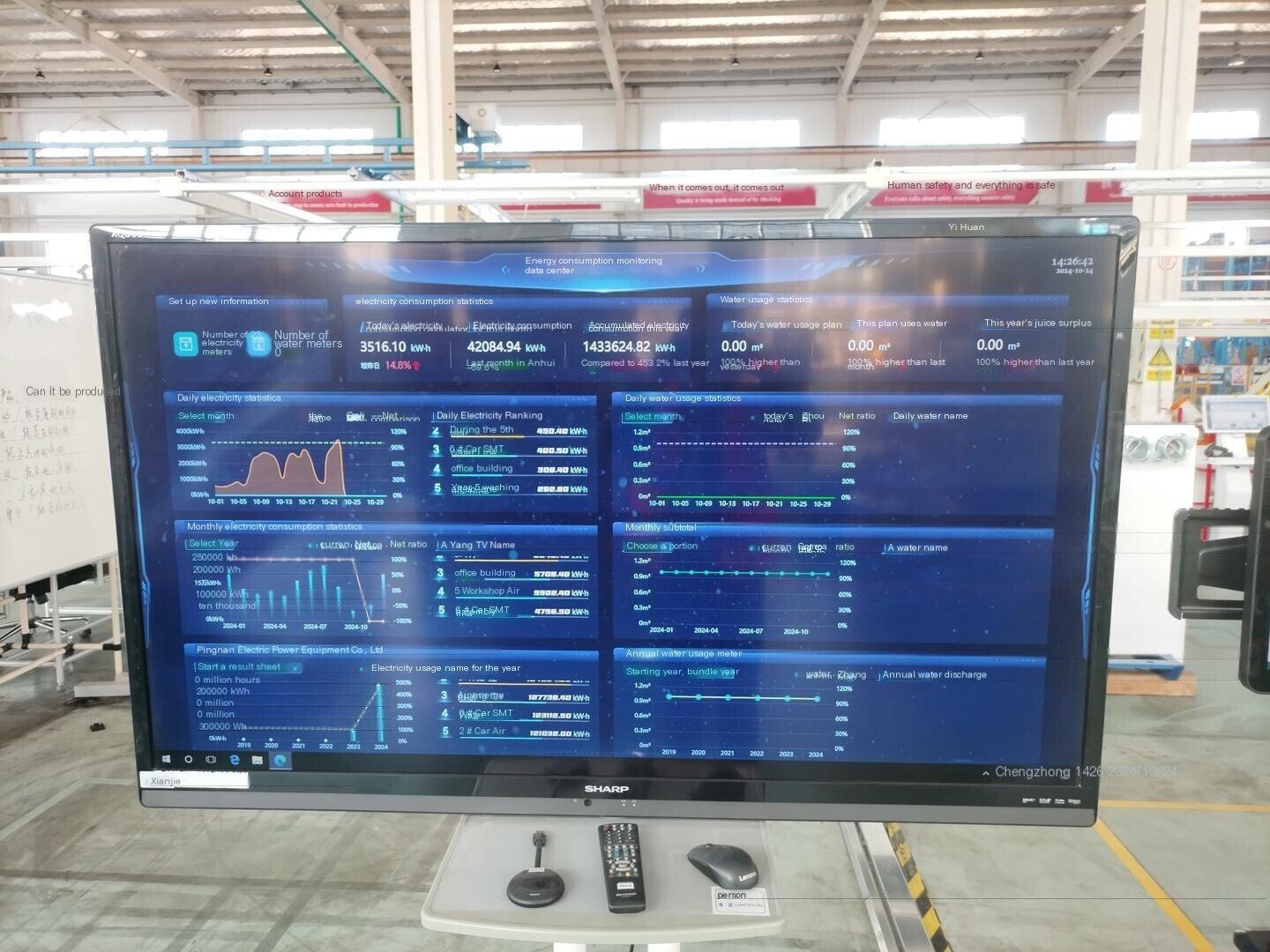

Environmental Data Online Monitoring System Large Screen Display Report

As a professional provider of IoT data acquisition solutions and an expert in industrial IoT data acquisition, the editor of Shanghai Data Acquisition IOT Technology Co., Ltd， (daq-iot) hereby presents the following introduction, and sincerely welcomes discussions and exchanges. Supported Communication Interfaces: CAN, RS485, Mbus, 4–20mA, Profibus, CC-Link, HART, digital I/O, etc. Industrial Protocols: Modbus RTU/TCP, HJ212, IEC104, DLT645, DLMS, IEC61850, MQTT, etc. Mail:export@daq-iot.com

Order (from left to right) displays point names, data identification units, yes/no, requires secondary calculation, and notes

1 PH value Phhour None No "Data hiding for 1.10-11, 14-15

2. Hourly traffic is equivalent to hourly cumulative traffic, added to be consistent with the customer display interface

3. Just display directly, no need to calculate the average by hour“

2 CODcr Codhour mg/l No

3 NH3-N Nh3nhour mg/l No

4-hour traffic tduhour m ³ No

5 cumulative traffic tduhour m ³ No

6 water temperature Wthour ℃ No

Water Treatment Daily Report

Order (from left to right) displays point names, data identification units, yes/no, requires secondary calculation, and notes

1 PH value phday no "can be displayed directly, there is no need to calculate the average value on a daily basis

"

2 CODcr codday mg/l No

3 NH3-N nh3nday mg/l No

4 Accumulated traffic tduday m ³ No

5 Water temperature wtday ℃ No

Report on Abandoned Coating No.1 (Same as Hour and Day)

Order (from left to right) displays point names, data identification units, yes/no, requires secondary calculation, and notes

1 Non methane total dry basis value Nmhcd mg/m ³ needs to be displayed after calculating the average value

The operating flow rate of 2 working conditions is m ³/h

3 standard flow rate standard Flow m ³/h is

4. The flue gas temperature flux ℃ is

5. What is the smoke pressure fluctuation KPa

What is the instantaneous value of the smoke flow velocity, fluev m/s

7 Smoke humidity flueh% is

Report on Abandoned Coating No. 2 (Same as Hour and Day)

Order (from left to right) displays point names, data identification units, yes/no, requires secondary calculation, and notes

1 Methane wet basis value Ch4we mg/m ³ needs to be calculated as the average value before displaying

2 Total hydrocarbon wet basis value Thcwe mg/m ³ is

3 NMHC nmhcwe/(100 haustOW) * 100 mg/m ³ is

4 NMHC wet basis value Nmhcwe mg/m ³ is

5 flow rate haustS m/s is

6 Temperature haustT ℃ is

7% humidity haustW% is

What is the flow rate of haustBV m ³/h under standard conditions
