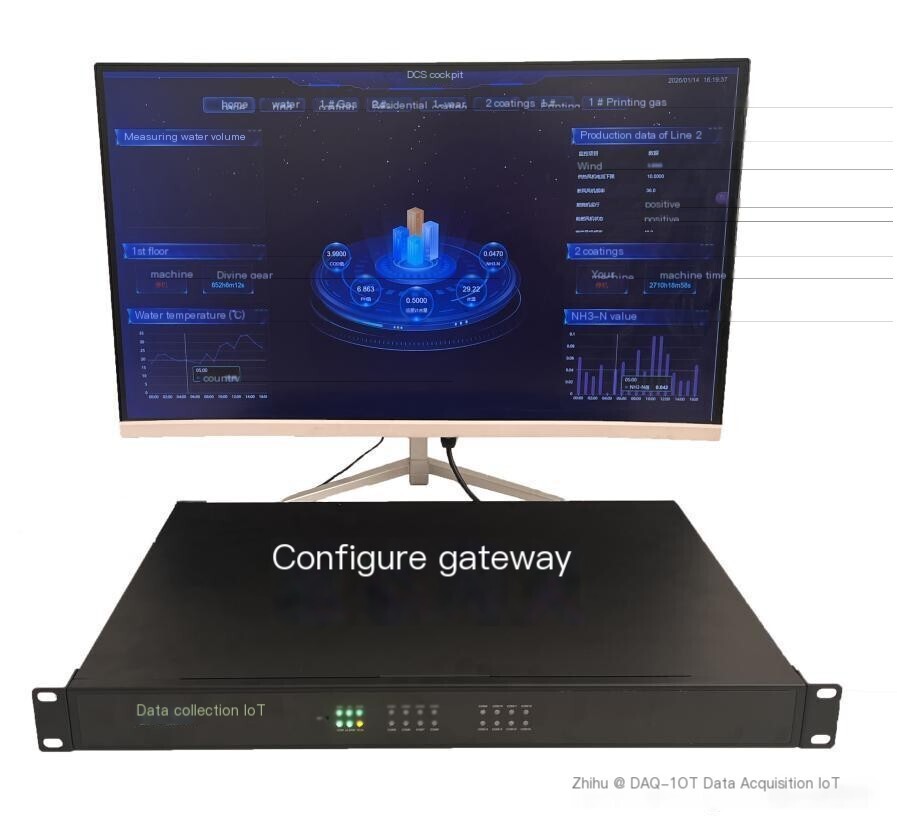

Industrial SCADA graphic configurationGateway- Dynamic environmental monitoring host - Xinchuang certification multi interface alarm
As a professional provider of IoT data acquisition solutions and an expert in industrial IoT data acquisition, the editor of Shanghai Data Acquisition IOT Technology Co., Ltd， (daq-iot) hereby presents the following introduction, and sincerely welcomes discussions and exchanges. Supported Communication Interfaces: CAN, RS485, Mbus, 4–20mA, Profibus, CC-Link, HART, digital I/O, etc. Industrial Protocols: Modbus RTU/TCP, HJ212, IEC104, DLT645, DLMS, IEC61850, MQTT, etc. Mail:export@daq-iot.com
This isSCADA graphic configuration GatewayEquipped with a high-performance processor, with a clock speed of up to 2.0GHz and 64 bits
quad-core Arm®Cortex®-A55 Architecture, integrating G52 GPU and 1TOPs computing power simultaneously NPU
Designed on theHardwareinterface RS-485、 RS232、USB、 Ethernet DI、DO、Vout、 HDMI, etc.
built-in SATA interfaceScalable SSD Solid State Hardware and PCIe interfaceCompatible with 4G modules to meet AIoT productsVarious types of communication
The access requirements of the communication method are that the device supports up to 16 serial port connections, and Gateway is embedded with our company's self-developed general industrial data
Collection system, flexible implementation of Real-time data upload and reception, supports custom configuration of large screen design, allowing industrial data to be viewed at a glance
Bottom. In addition, the device is equipped with USB storage, USB Debug port, and USB-D upgrade port to meet the on-site requirements of the product
Application functions such as upgrading, debugging, data storage, and data export.
name
Communication Management Machine DAQ-GP-GCGW
processor
Four core Cortex-A55, with a maximum frequency of 2.0GHz
GPU
ARM G520
NPU
1TOPS* RKNN
RAM capacity
4GB
FLASH capacity
32G
RTC
Built in RTC, RTC timing function
DI
18 way DI optoelectronic isolation, dry contact input Shanghai DAQ-IoT Network Technology Co., Ltd
Table 1 Product Configurationtable
Gatewayadopts advanced highly integratedHardwareand software platform to optimize many commonly usedIoTplatforms,
Complete wireless reception, transmission,Data Acquisitionprocessing, andProtocolparsing functions. The structural dimensions ofGatewayare 483 * 330 * 32mm.
It can be widely applied in various fields, such as industry, smart agriculture, power monitoring, environmental pollution monitoring, and smart agriculture
Suitable for home and safety management scenarios.
2
Service Philosophy
Our company solemnly promises:
You are not only purchasing products, but also providing meticulous and thoughtful technical support services！！！(
=^_^=
)
This product only requires ordinary workers to connect and install it on site! No debugging required!
We provide free remote guidance, remote configuration and debugging services, and send data to the user's designated cloud platform.
Free consultation service forIoTsolution!
DO
4-channel DO relay
VOUT
4-channel power output DC 12V (maximum 12V 2A)
RS485
16 RS485 interfaces (including 8 SPI to RS485 interfaces) default baud rate 9600
RS232
2-channel independent isolation default baud rate 115200 (multiplexed RS485)
USB
2-channel USB 2.0
Ethernet port
4-channel 2x10/100M/2x100/1000M adaptive network port (independent IP, different network segments)
4G function
All network 4G-CAT1
SIM card
1 self-locking SIM interface
SSD hard drive
MSATA supports a maximum of 2TB
SD card
TF (128GB Max)
Power failure protection
Support (5-10 seconds)
software watchdog
support
indicator light
5 customizable and controllable channels
buzzer
1 supports custom Buzzer
Type-c
2-channel 1 * OTG upgrade, 1 * USB debugging port
video output
HDMI
power input
AC90-220V dual power supply
Operating Temperature
Working temperature -20~+55 ℃
Ambient temperature and humidity
Working humidity: 5% -95% (no condensation)
operating system
Ubuntu20.04
Shell and installation
Sheet metal shell -1U;
Software Protocol
Support providing secondary development interface Protocol, calling various interface functions of the all-in-one machine
Gatewayadopts advanced highly integratedHardwareand software platform to optimize many commonly usedIoTplatforms,
Complete wireless reception, transmission,Data Acquisitionprocessing, andProtocolparsing functions. The structural dimensions ofGatewayare 483 * 330 * 32mm.
It can be widely applied in various fields, such as industry, smart agriculture, power monitoring, environmental pollution monitoring, and smart agriculture
Suitable for home and safety management scenarios.
2
Service Philosophy
Our company solemnly promises:
You are not only purchasing products, but also providing meticulous and thoughtful technical support services！！！(
=^_^=
)
This product only requires ordinary workers to connect and install it on site! No debugging required!
We provide free remote guidance, remote configuration and debugging services, and send data to the user's designated cloud platform.
Free consultation service forIoTsolution!
DO
4-channel DO relay
VOUT
4-channel power output DC 12V (maximum 12V 2A)
RS485
16 RS485 interfaces (including 8 SPI to RS485 interfaces) default baud rate 9600
RS232
2-channel independent isolation default baud rate 115200 (multiplexed RS485)
USB
2-channel USB 2.0
Ethernet port
4-channel 2x10/100M/2x100/1000M adaptive network port (independent IP, different network segments)
4G function
All network 4G-CAT1
SIM card
1 self-locking SIM interface
SSD hard drive
MSATA supports a maximum of 2TB
SD card
TF (128GB Max)
Power failure protection
Support (5-10 seconds)
software watchdog
support
indicator light
5 customizable and controllable channels
buzzer
1 supports custom Buzzer
Type-c
2-channel 1 * OTG upgrade, 1 * USB debugging port
video output
HDMI
power input
AC90-220V dual power supply
Operating Temperature
Working temperature -20~+55 ℃
Ambient temperature and humidity
Working humidity: 5% -95% (no condensation)
operating system
Ubuntu20.04
Shell and installation
Sheet metal shell -1U;
Software Protocol
Support providing secondary development interface Protocol, calling various interface functions of the all-in-one machine Shanghai DAQ-IoT Network Technology Co., Ltd
3
Feature Introduction
3.1 GeneralIndustrial Data Acquisition system
Connect the device through the Ethernet port and use the ping command to test whether it is connected to the local device in the same network segment or directly using HDMI connection
After connecting the display screen and opening the device, you can open a browser and enter: 192.168.10.2:16801/scada/(the red ground in front)
The address needs to be filled in with the IP address of the corresponding network port. The corresponding IP address can be found in "Table 3 Network Port Description Diagram" below; If using HDMI connection
To debug directly on the display screen, enter the website address: http://localhost:16801/scada/ Or click on the website on the system desktop
Can open the login interface of the general industrial Data Acquisition system;
Enter account: super Initial password: 123456 to log in to the system;
This system is a set of devices and management software running onGateway, mainly used for various instruments and equipment
Data collection, control, storage, and retrieval for PLC, injection molding machines, CNC machine tools, electric meters, flow meters, analyzers, etc
Inquire, showcase, and upload. The main functions of the system include:
Figure 3 Example diagram of the general industrial Data Acquisition system interface
Device Data Acquisition, upload platform data, and communication Protocol conversion.
Supports a wide range of data links and communication Protocol.
Flexible and easy-to-use transmission configuration.
Data Real-time monitoring and alarm monitoring.
Diversified data storage and querying, supporting database upload.
Free configuration and visual interface design.
User and permission management, allowing users to freely create and manage downstream accounts.Shanghai DAQ-IoTNetwork Technology Co., Ltd
The interface supports multiple languages.
3.2 Communication Protocol Support
The supported communication links include:
Link type
communication link
TCP
TCP client
TCP server
serial port
Serial UART
UDP
UDP
HTTP
HTTP server
HTTP client
OPC
OPC-UA
OPC-DA
MQTT
MQTT-TCP
MQTT-WebSocket
The supported communication links Protocol include:
Protocol Type
Main Protocol
Child Protocol
PLC communication Protocol
Modbus
Modbus-RTU
Modbus-TCP
Modbus-ASCII
Siemens S7
Mitsubishi MELSEC Communications Protocol
MELSEC-1E
MELSEC-3C
MELSEC-3E
MELSEC-4C
MELSEC-4D
Mitsubishi-Fx
OPC Communication Protocol
OPC-UA
OPC-DA
MQTT communication Protocol
MQTT-JSON
Instrument communication Protocol
DL/T645 Shanghai DAQ-IoT Network Technology Co., Ltd
DL/T698.45
DLMS
DLMS-LN
DLMS-SN
IEC62056-21
Edmi Command-Line
CDT
IEC103
IEC104
Environmental Monitoring Communication Protocol
HJ212
Data Transmission Standard for Pollution Source Online Automatic Monitoring System
SL651
Hydrological Monitoring Data Communication Protocol
ZY206
（SZY206-2016）
Transmission Protocol for Water Resources Monitoring Data
3.3 Configuration Visualization Interface
Figure 4 Example of Configuration Screen
On the configuration page, the available functions include:
Display the device values collected by Real-time.
Display data history.
Display dynamically changing system processes.Shanghai DAQ-IoTNetwork Technology Co., Ltd
By manipulating page elements, issue commands and numerical values to the device.
Switch to a different view page.
4
Interface Definition
Figure 5 Gateway Interface Definition Diagram
The DAQ-GP-GCGW graphic configuration Gateway is designed to maintain a clear and concise style. The serial port function interface is as follows:
function
name
explanation
Mapping
serial port
A1 B1
485 serial port 0
/dev/ttyS0
A2 B2
485 serial port 1
/dev/ttyS1
A3 B3
485 serial port 3
/dev/ttyS3
A4 B4
485 serial port 4
/dev/ttyS4
A5 B5
485 serial port 5
/dev/ttyS5
A6 B6
485 serial port 7
/dev/ttyS7
A7 B7
485 serial port 8
/dev/ttyS8
A8 B8
485 serial port 9
/dev/ttyS9
RX9 TX9(A9/B9)
232 serial port 6
/dev/ttyS6
TX10 RX10(A10 B10)
232 serial port 0
/dev/ttyS0
SPI to serial port conversion
A9 B9
485 serial port
/dev/ttysWK0
A10 B10
485 serial port
/dev/ttysWK1
A11 B11
485 serial port
/dev/ttysWK2
A12 B12
485 serial port
/dev/ttysWK3
A13 B13
485 serial port
/dev/ttysWL0
A14 B14
485 serial port
/dev/ttysWL1
A15 B15
485 serial port
/dev/ttysWL2
A16 B16
485 serial port
/dev/ttysWL3
Table 2 Serial port pin list
The DAQ-GP-GCGW graphic configuration Gateway includes 4 network ports, and the interface description is as follows:
function
name
explanation
Mapping
Ethernet port
Eth1
1000M default IP: 192.168.10.2
eth0
Eth2
1000M default IP: 192.168.20.2
eth1
Eth3
10/100M default IP: 192.168.30.2
eth20
Eth4
10/100M default IP: 192.168.40.2
Eth30 Shanghai DAQ-IoT Network Technology Co., Ltd
Table 3 Network Port Description Table
In addition, the device also supports RS232, USB, DI, DO, and Vout interfaces. Please contact our company for specific interface definitions
Detailed product technical documentation;
5
Gateway Size
Figure 6 Gateway Dimensional Diagram
parameter
description
mechanical parameters
Dimensions (mm)
483*330*32mm
6
Address: 16th Floor, Building 6, Lane 888, Xinlang Road, Songjiang District, Shanghai
