1、 System Overview

Data Collection IoTIntelligent control lighting system(DAQ-GP-LJ) is a product that integrates lighting switch/dimming controlScene ManagementAn industrial grade lighting control upper computer software that integrates equipment O&M and log auditing, supporting centralized management of multiple Gateway, multiple areas, and multiple devices, suitable for intelligent lighting automation control in buildings, venues, industrial plants, and other scenarios.

2、 Core Function Module Description

1. View management

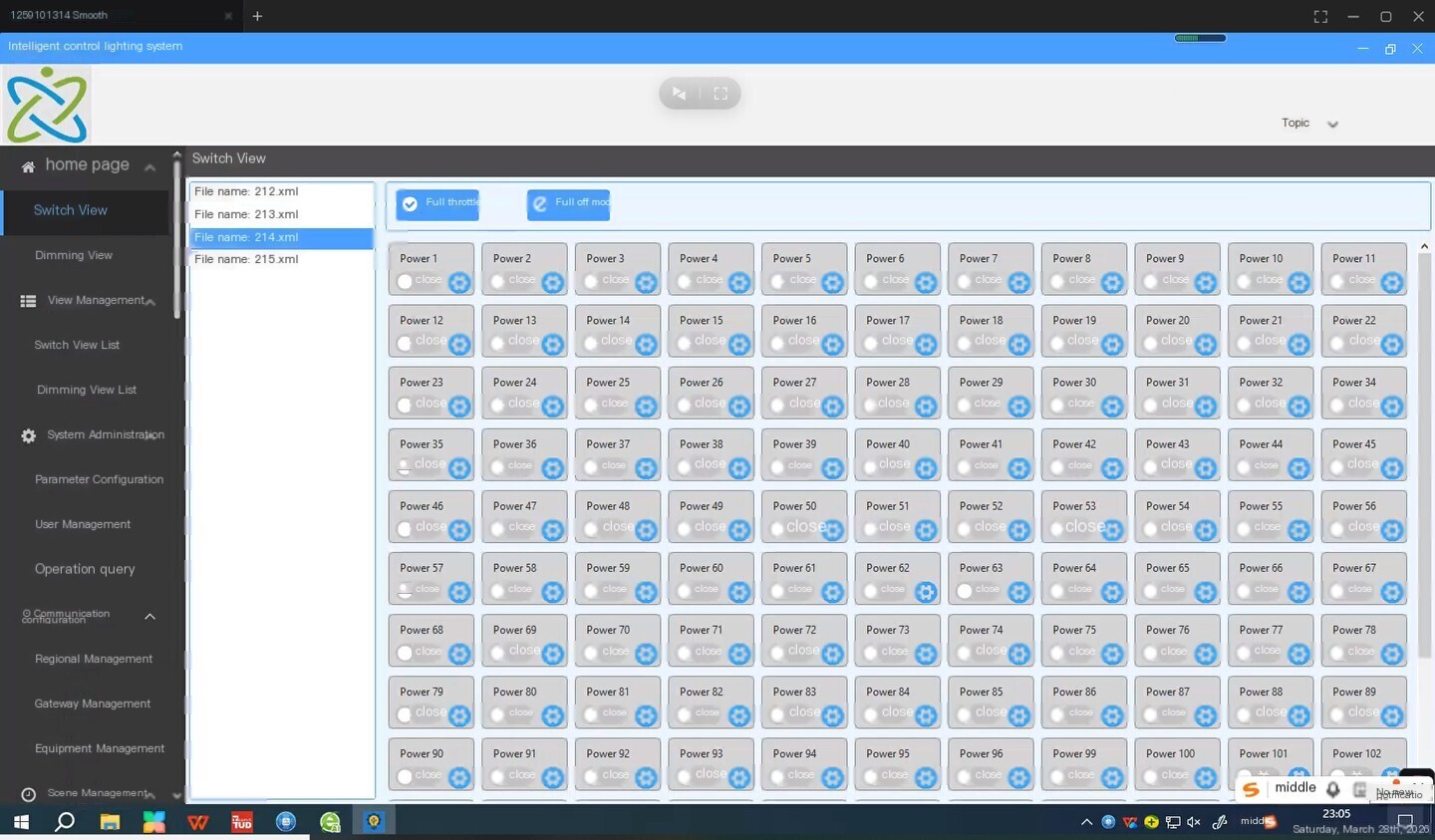

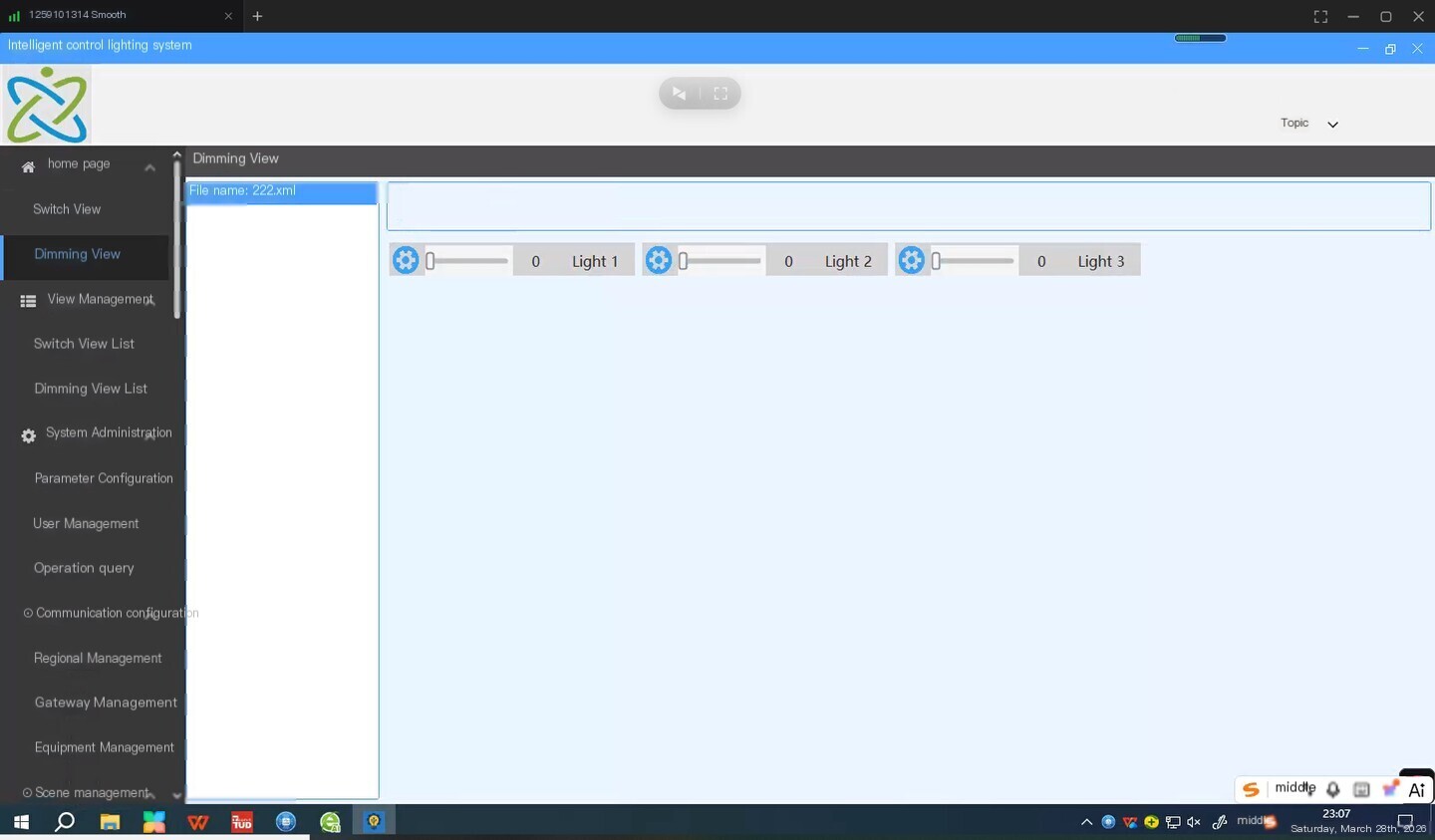

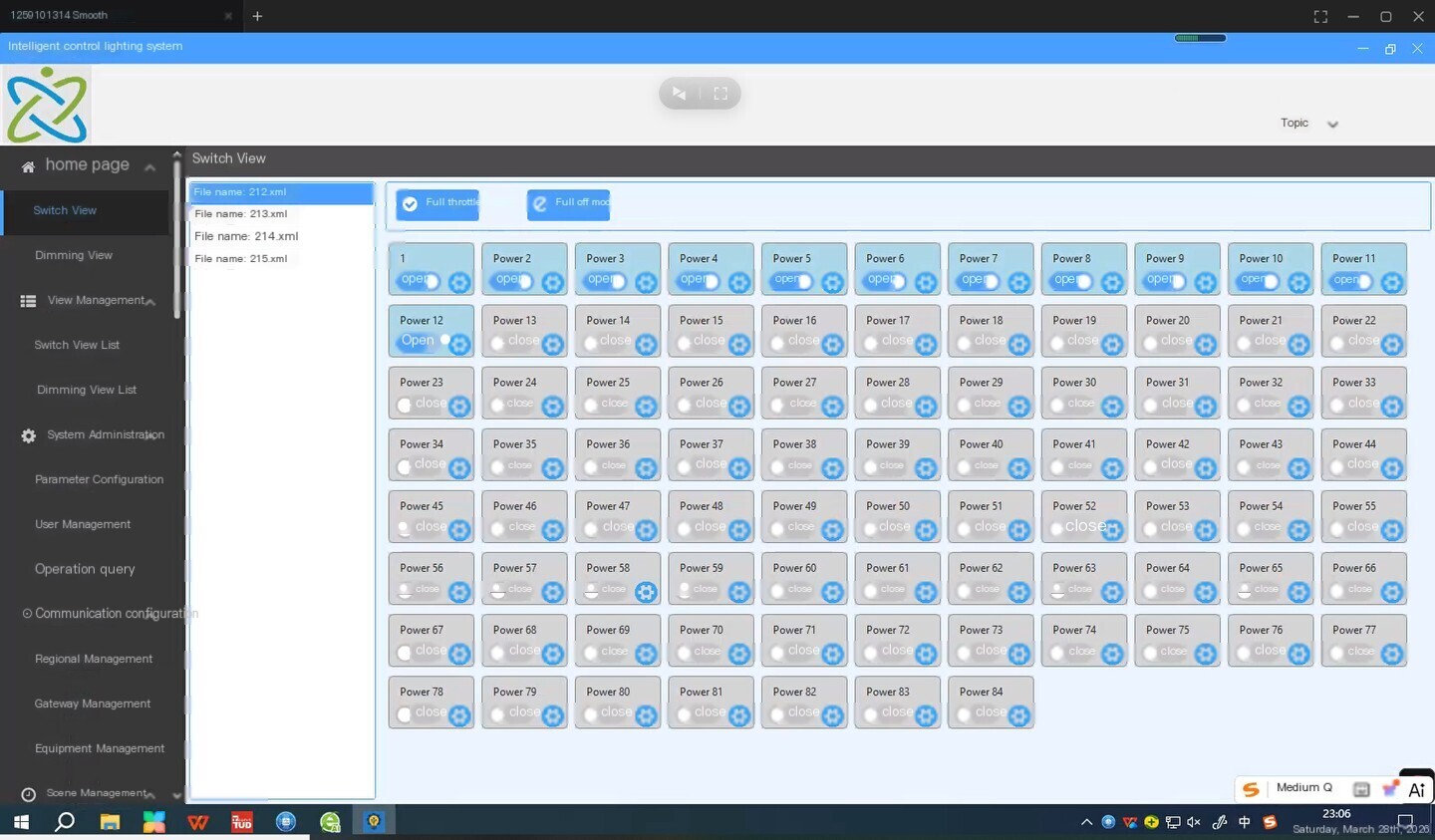

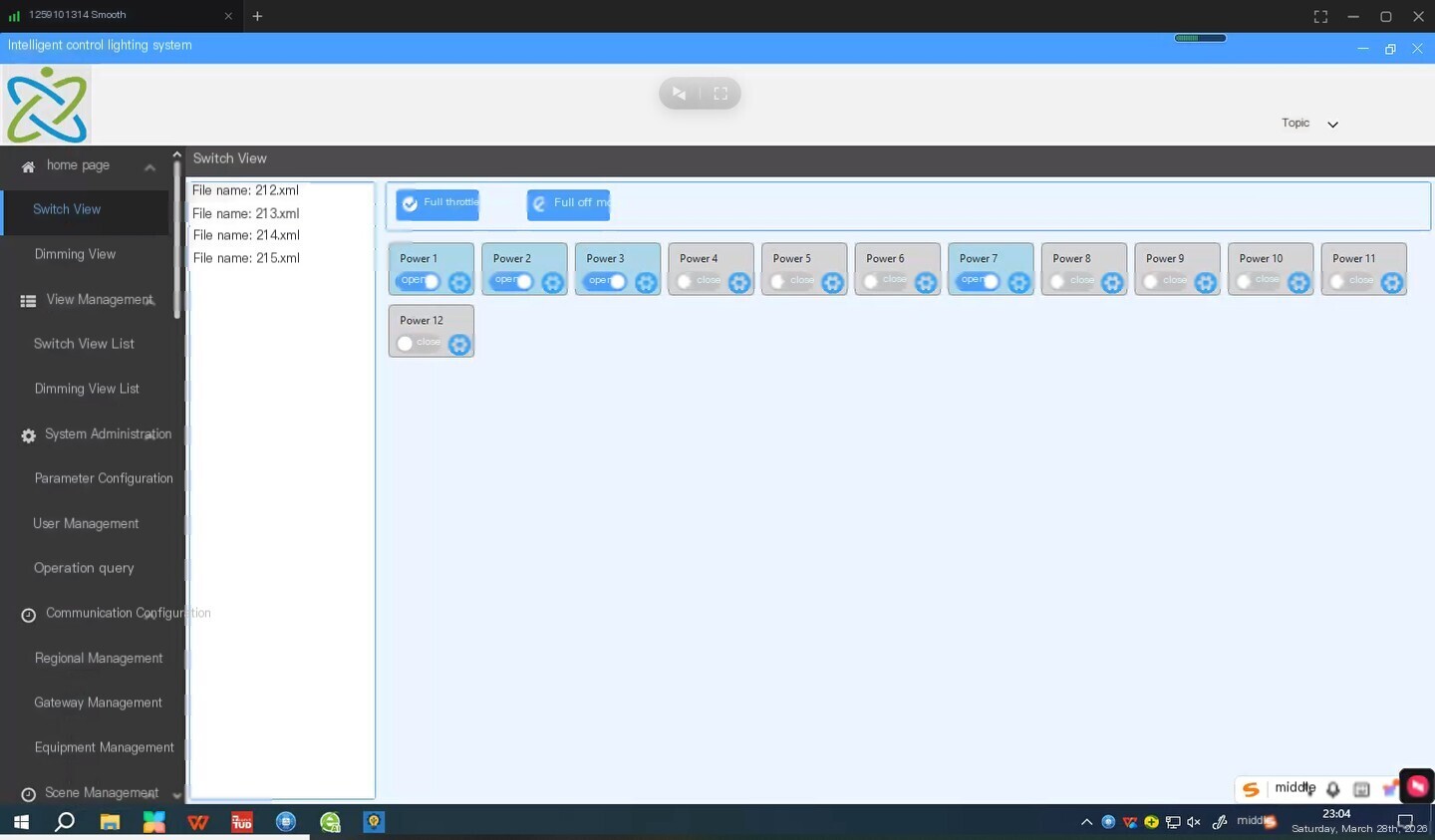

Switch View/Dimming View: Supports custom lighting control view templates, batch addition of switch/dimming devices, one click implementation of full off/full on mode, intuitive display of single/multiple lighting status, supports quick operation.

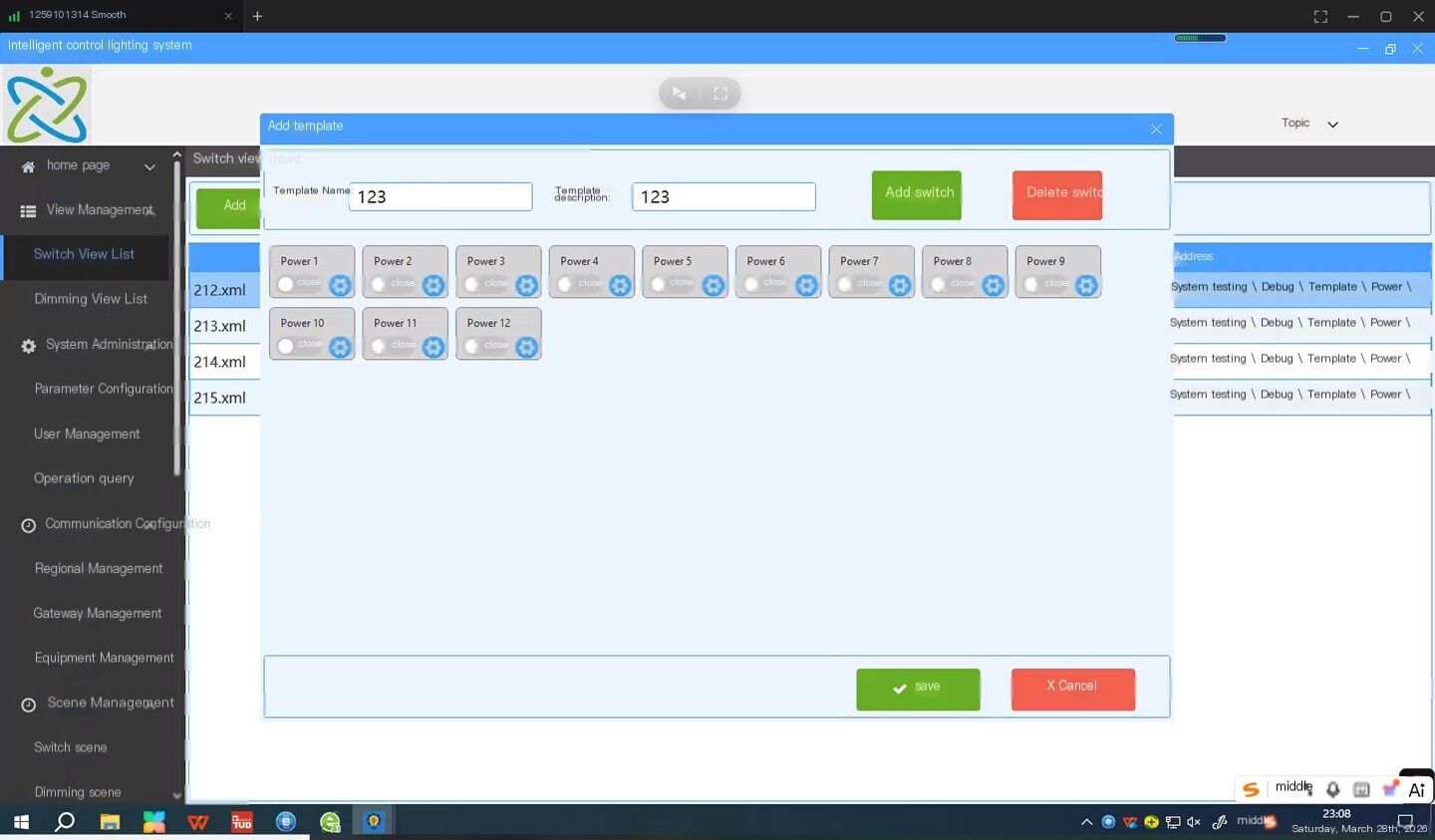

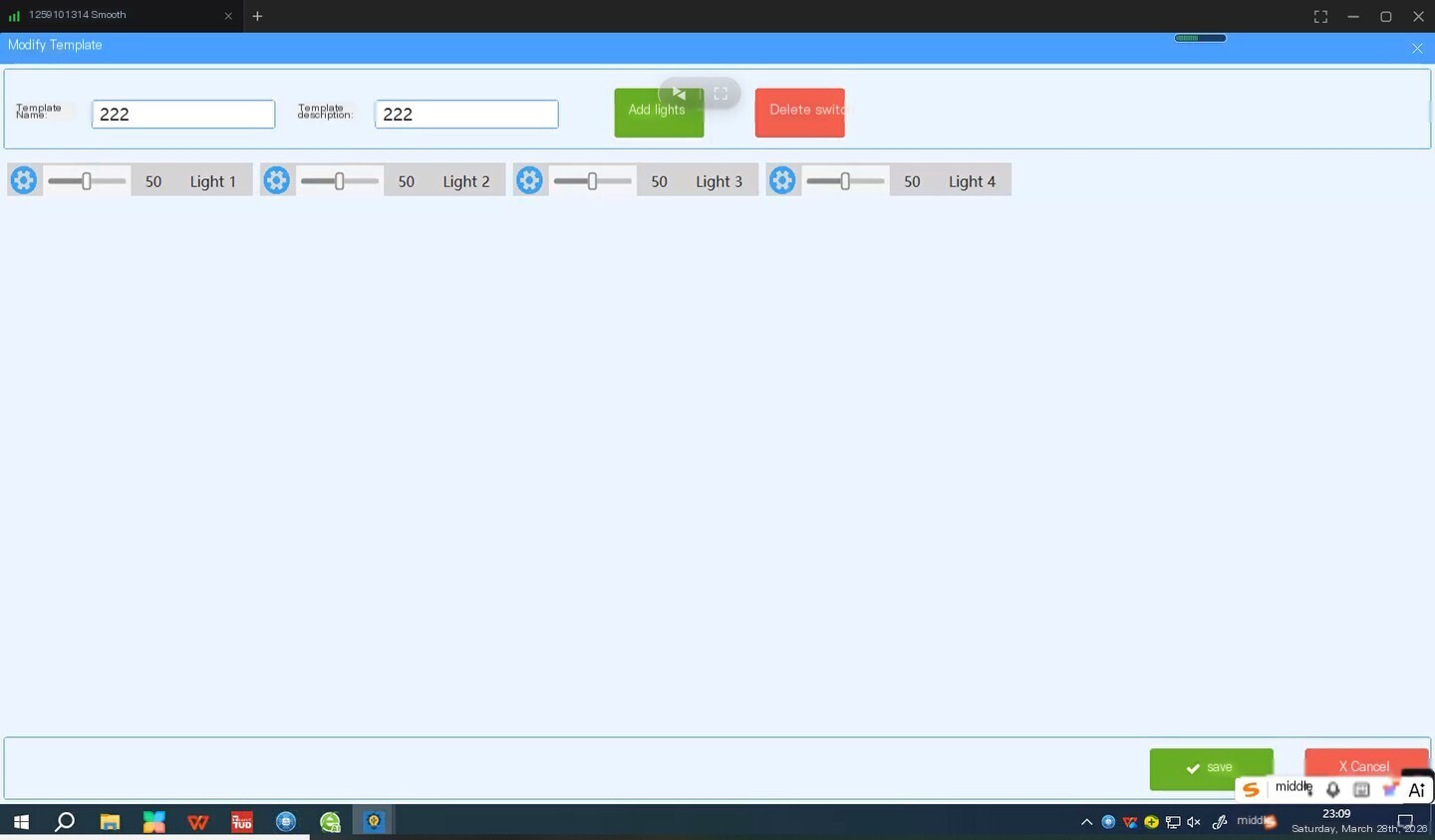

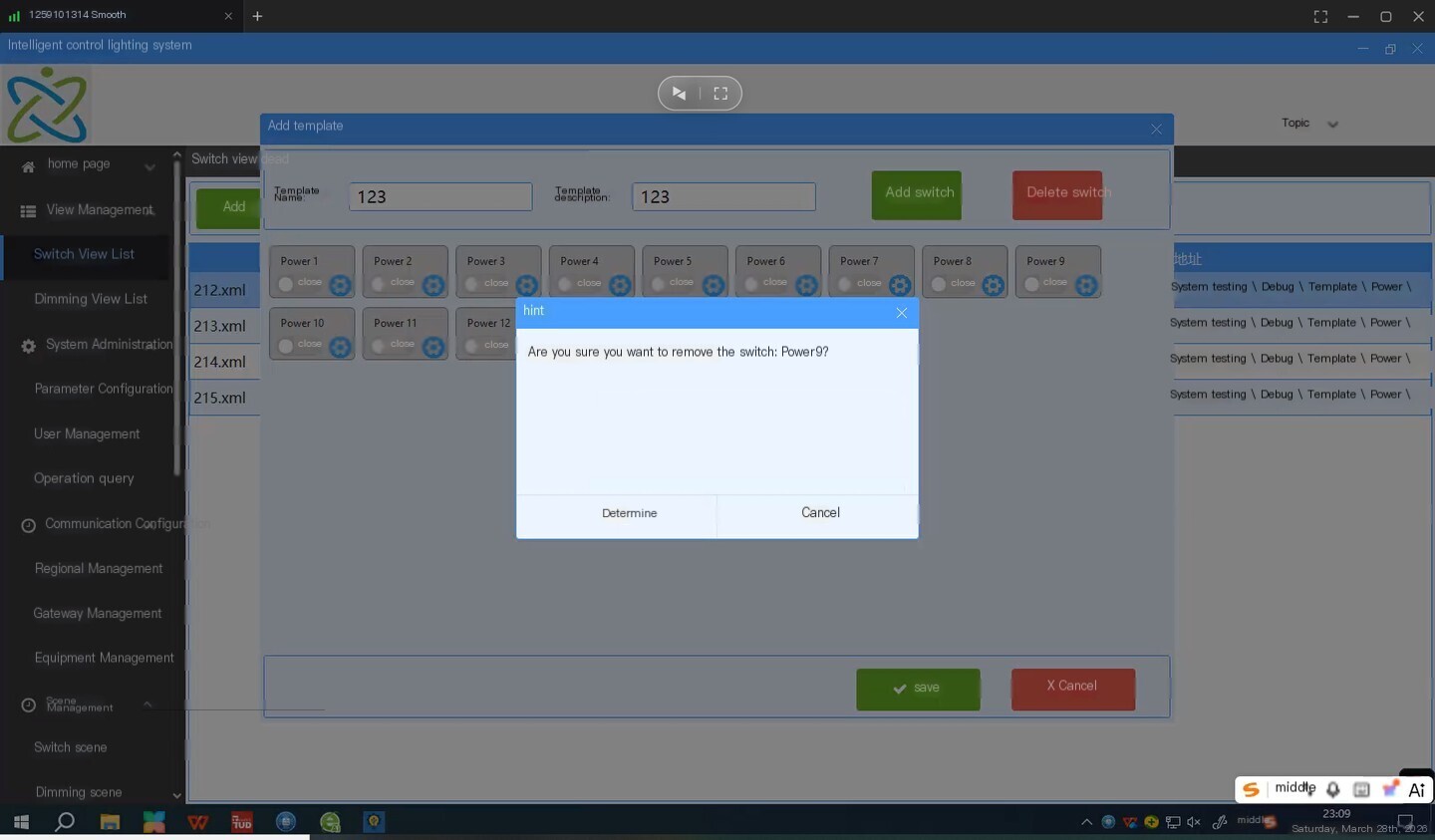

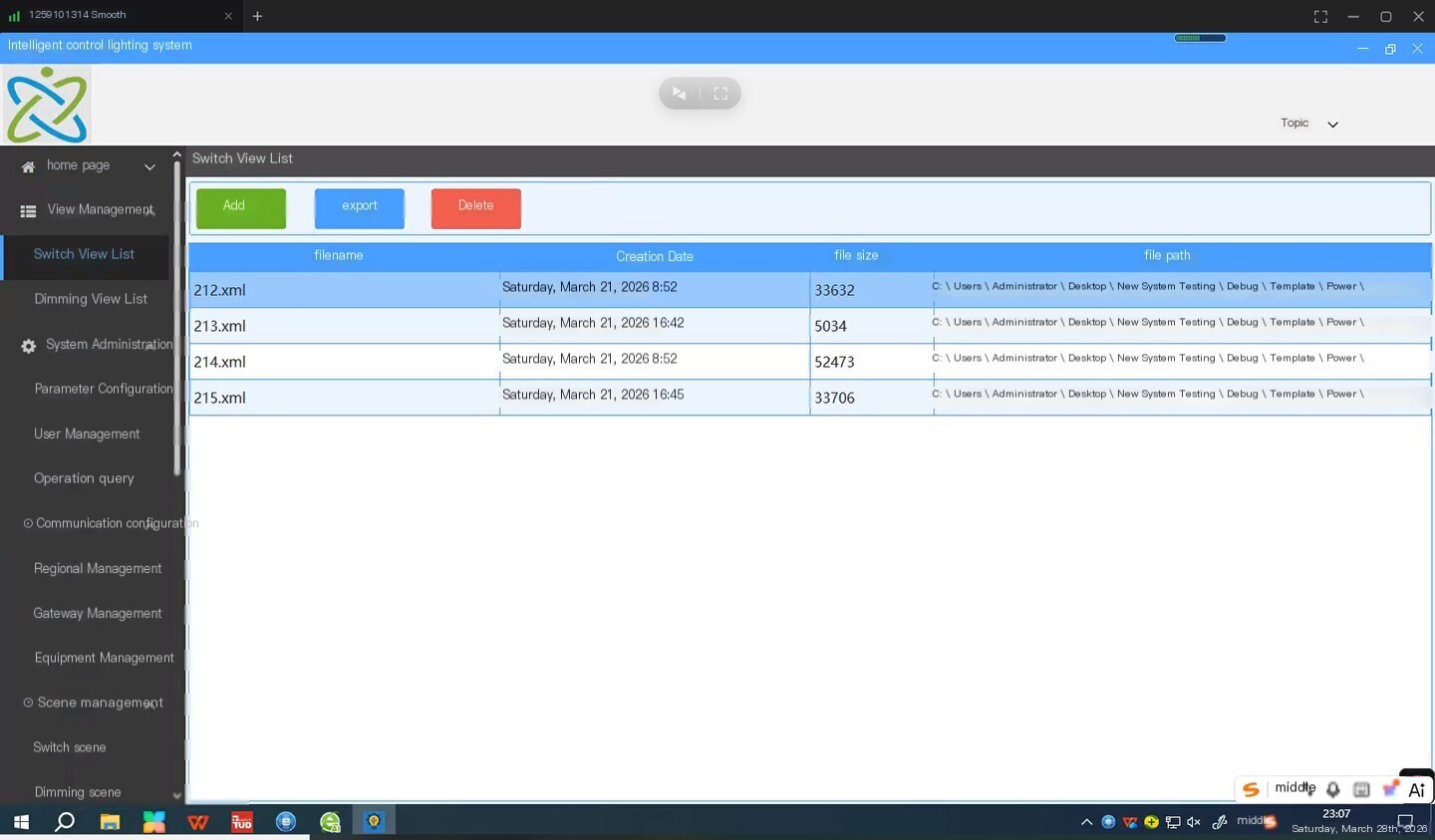

View list management: view templates can be added, edited, and deleted, supporting batch configuration of templates and adapting to lighting control needs in different regions and scenes.

2. Communication configuration

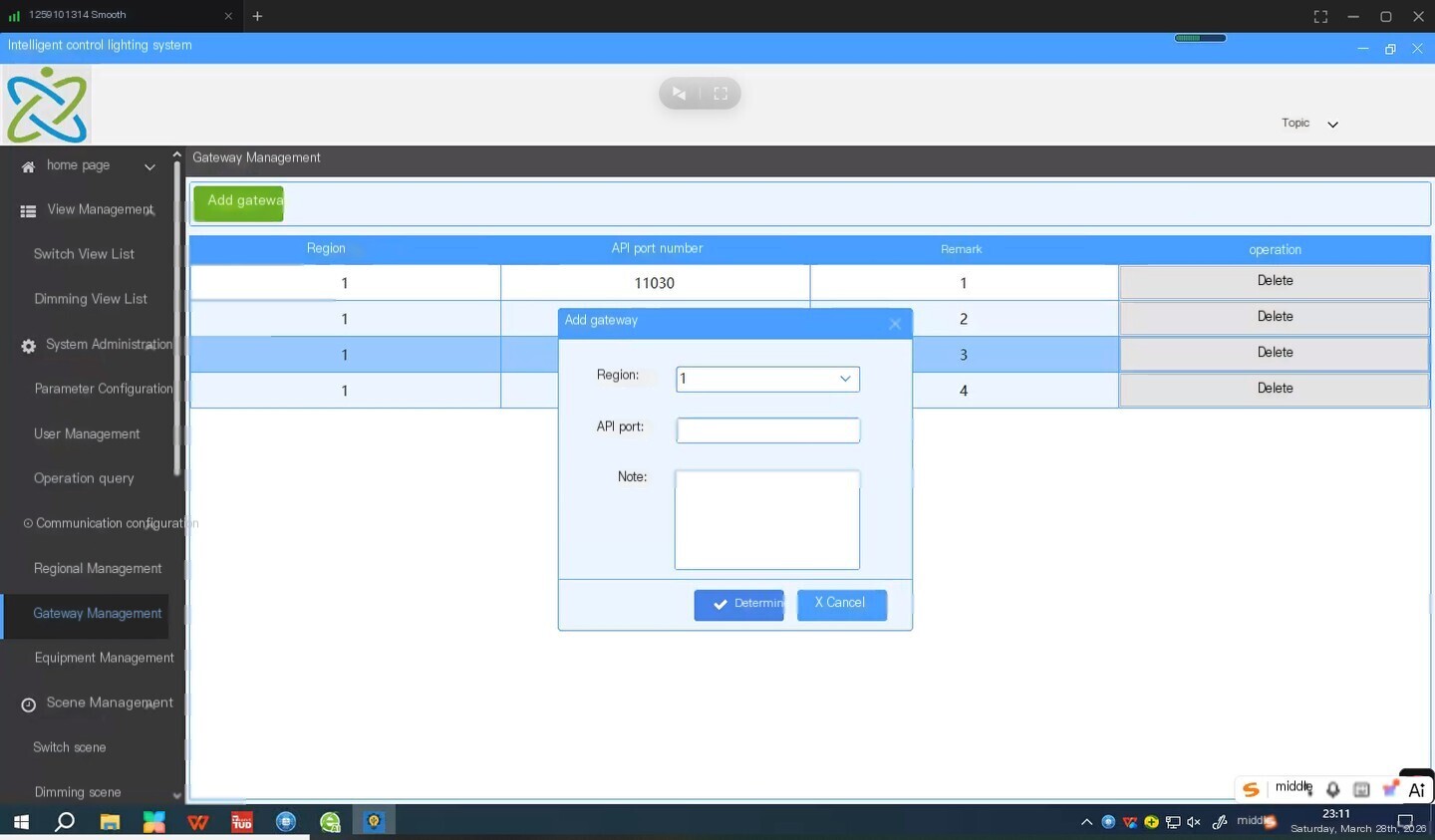

Gateway Management: Supports multiple Gateway access configurations, allowing for the addition of Gateway, allocation of regions, and binding API portTo achieve unified control of lighting systems across multiple network segments and regions.

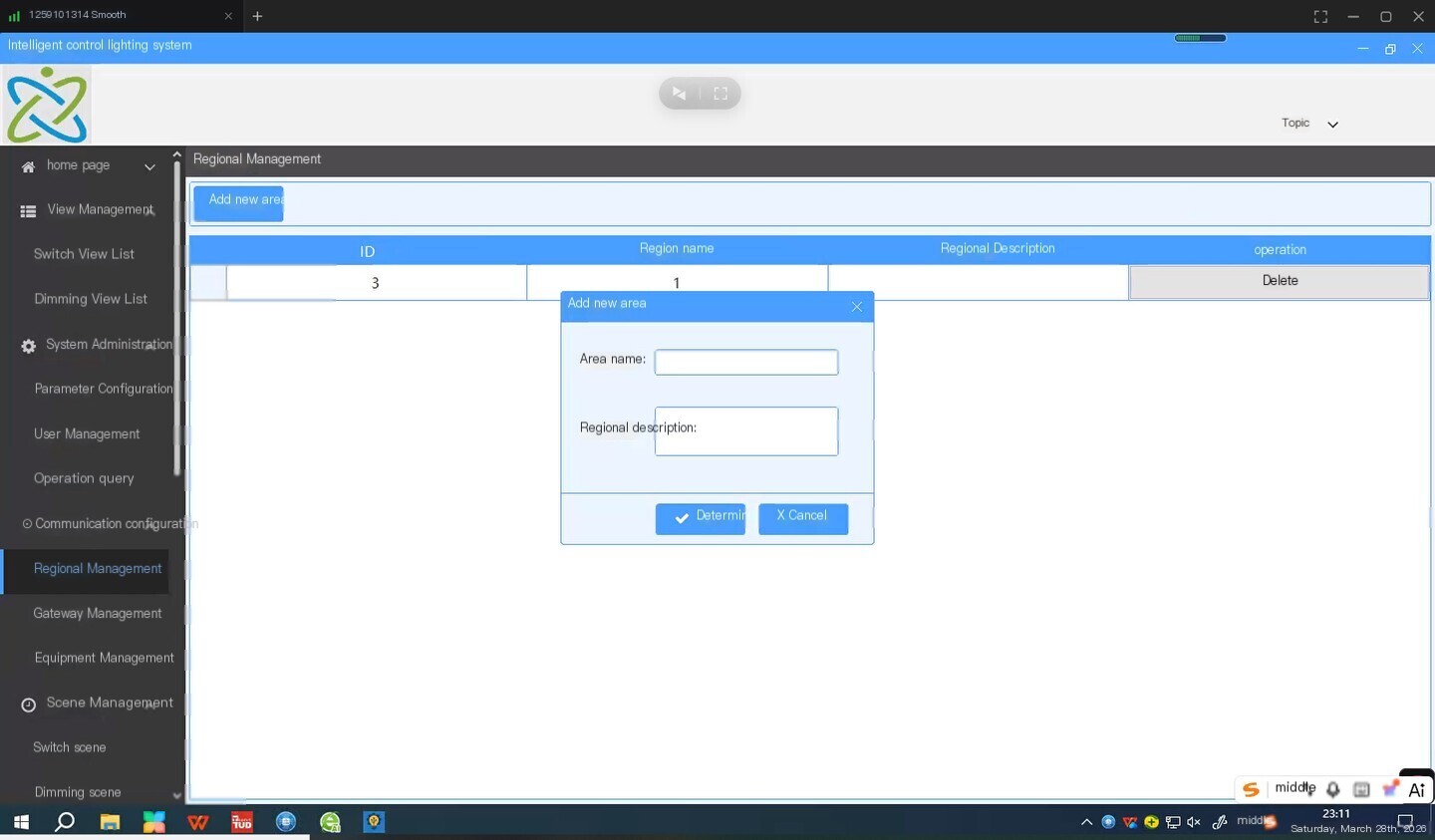

Regional management: Support the division of lighting control units according to physical areas, achieve zoning control and scene management, and adapt to the lighting needs of large building layers/zones.

3. Device Management

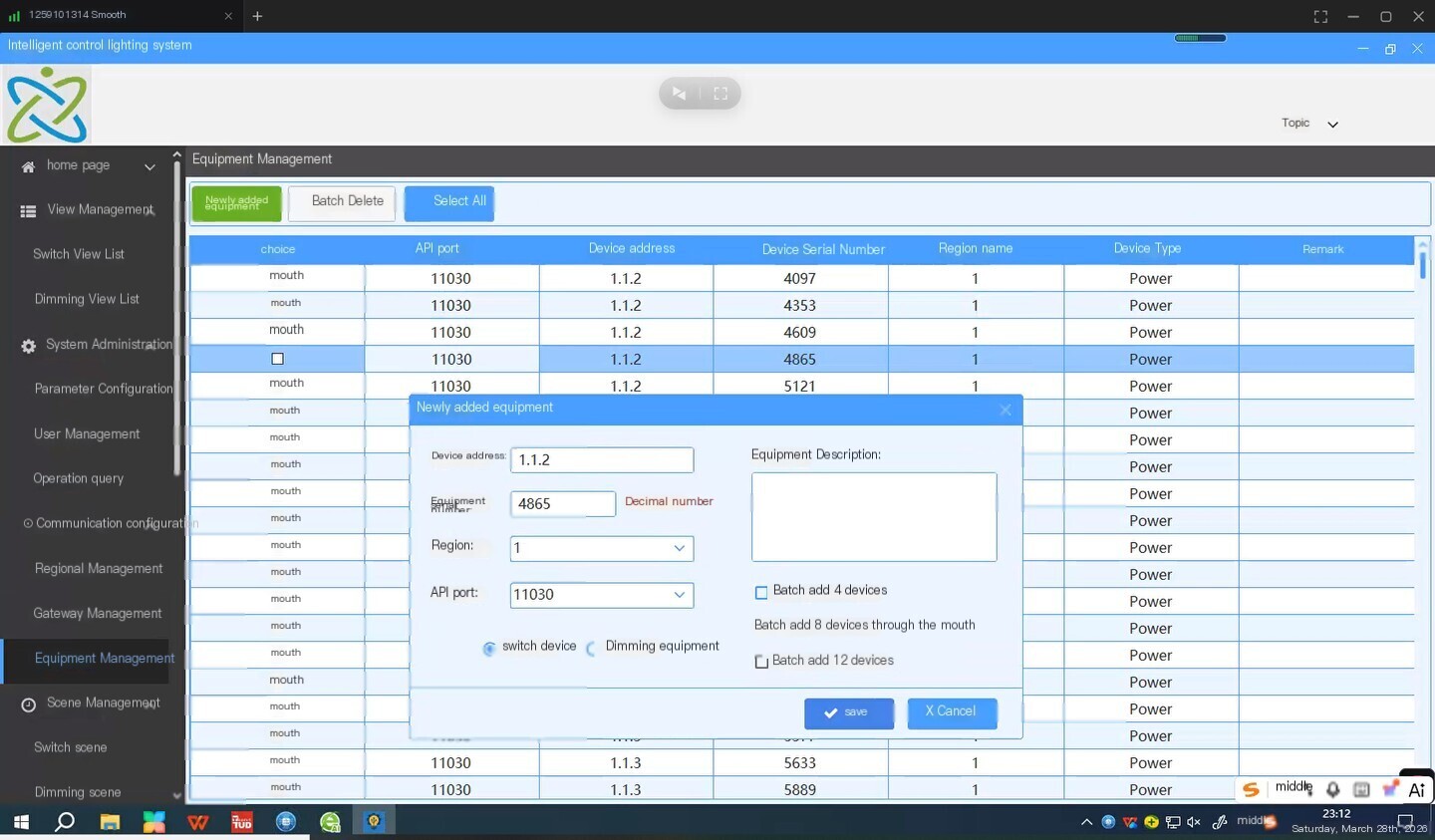

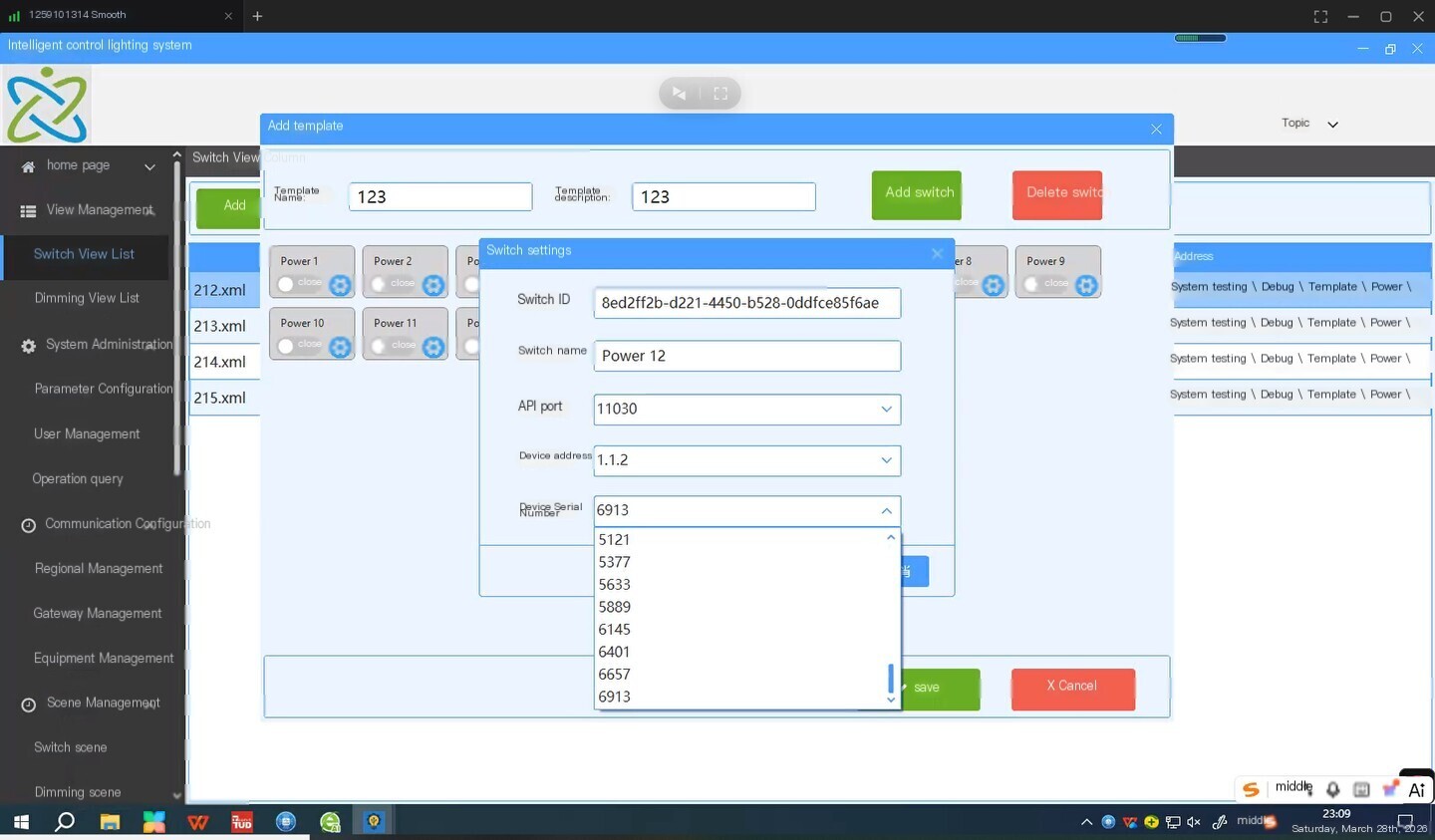

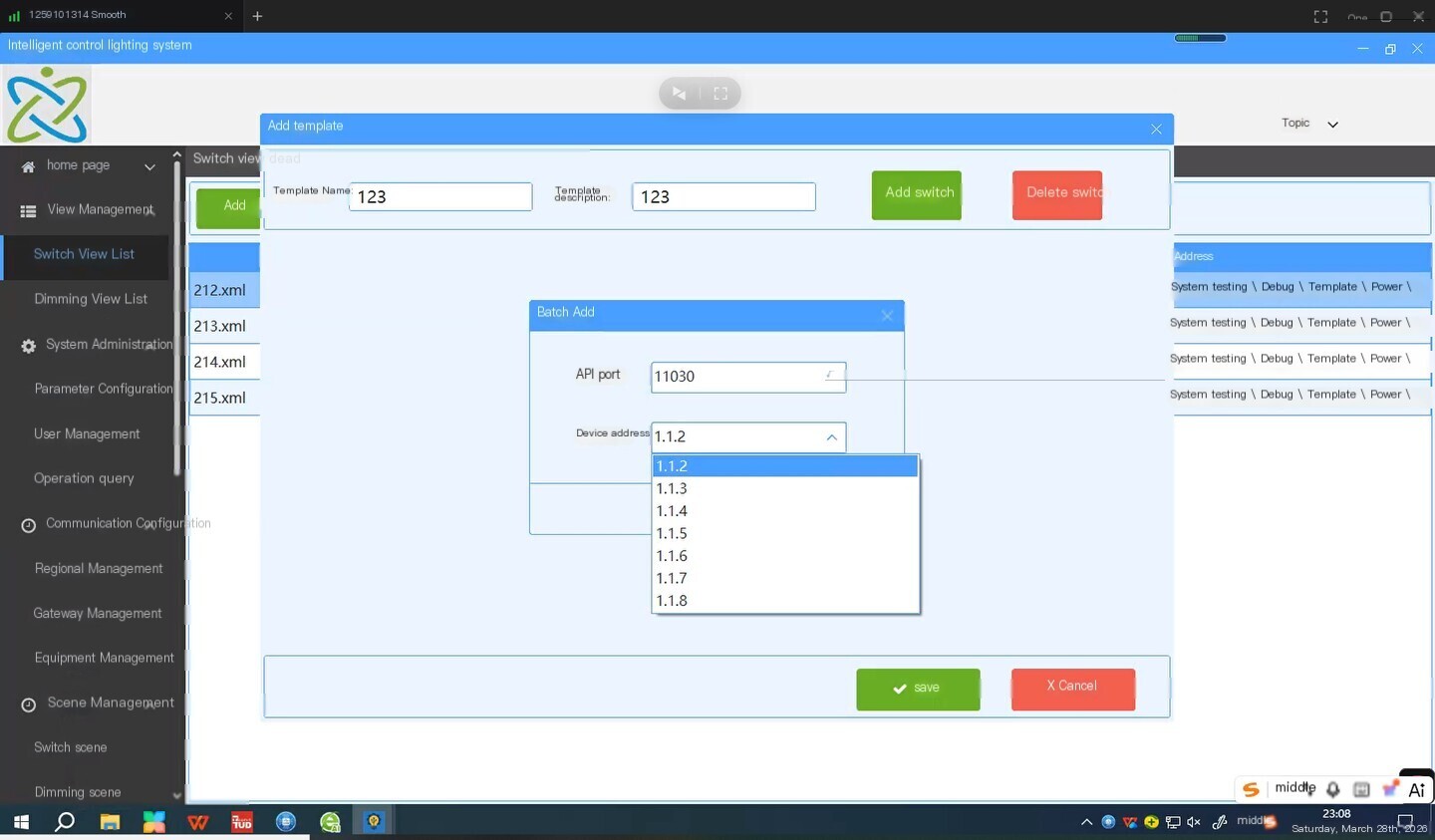

Equipment ledger management: supports batch addition/deletion of switch devices and dimming devices, configurable device addresses, API ports, regions, and device types, supports batch addition of 4/8/12 devices, and quickly completes system deployment.

Equipment status monitoring:Real-timedisplays the online status and communication parameters of the equipment, supports batchO&Mand troubleshooting of the equipment.

4. Scene management

(1) Switch scene

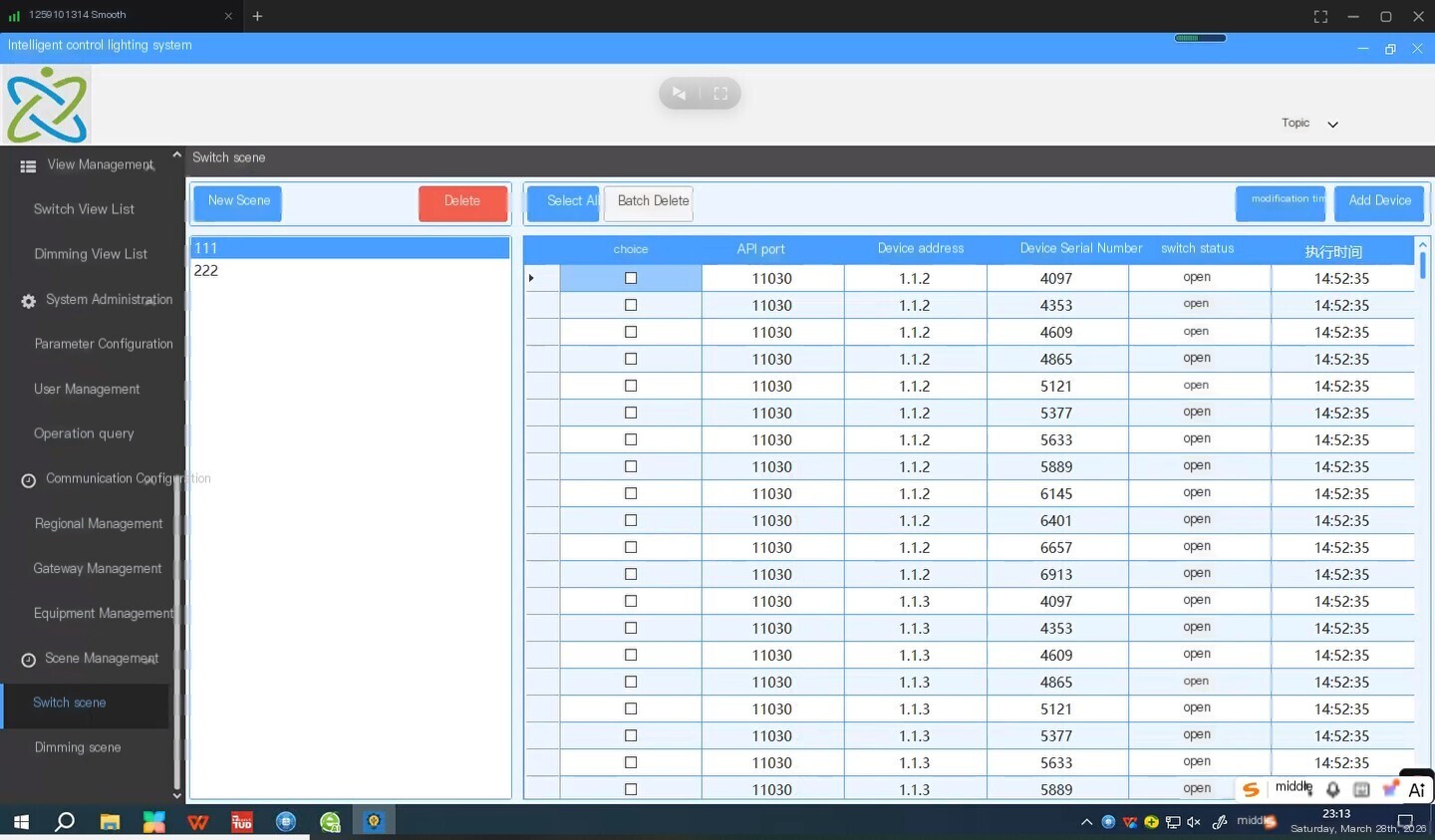

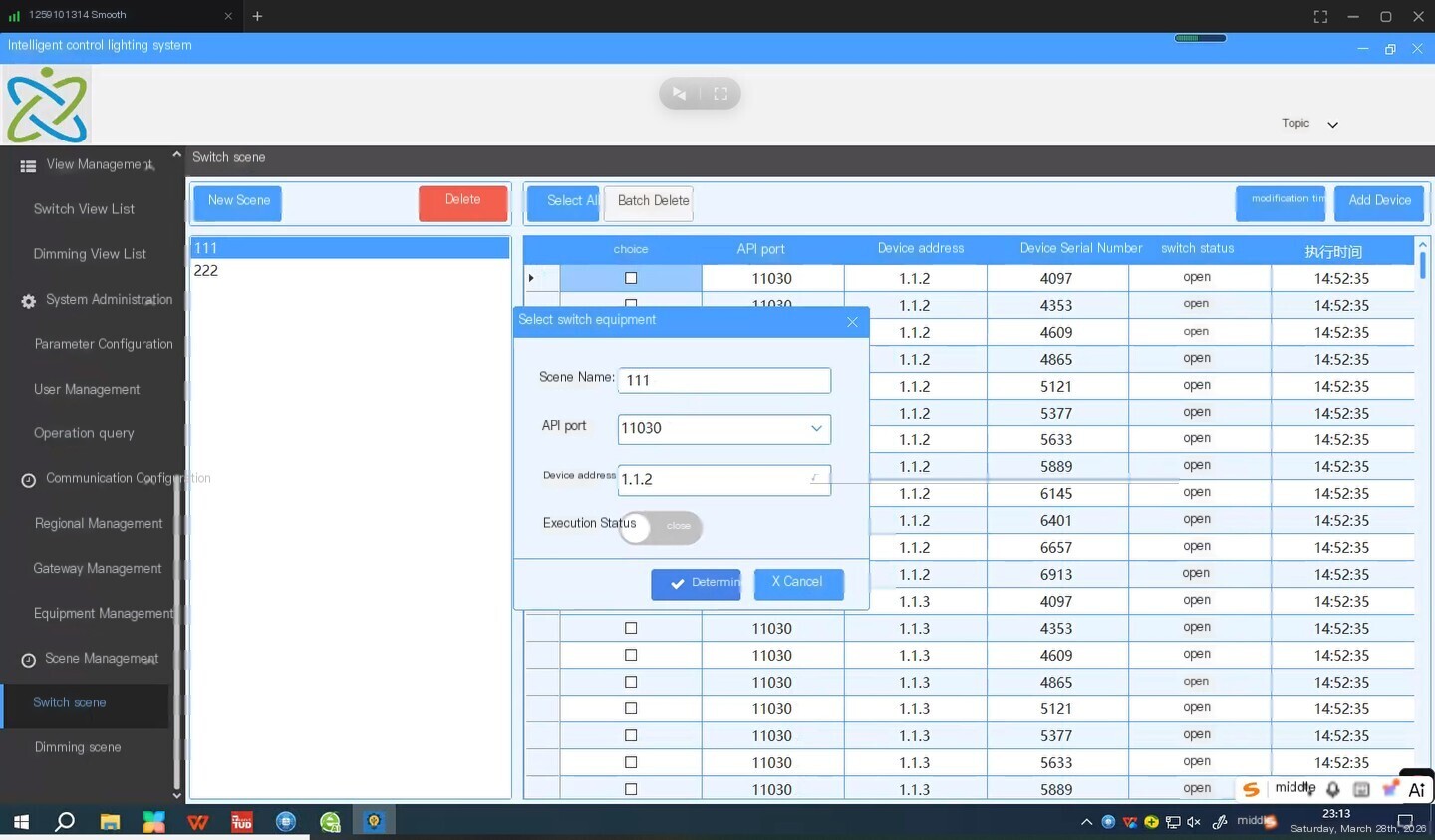

Support custom switch scenarios, batch add devices, configure switch status, and set execution time.

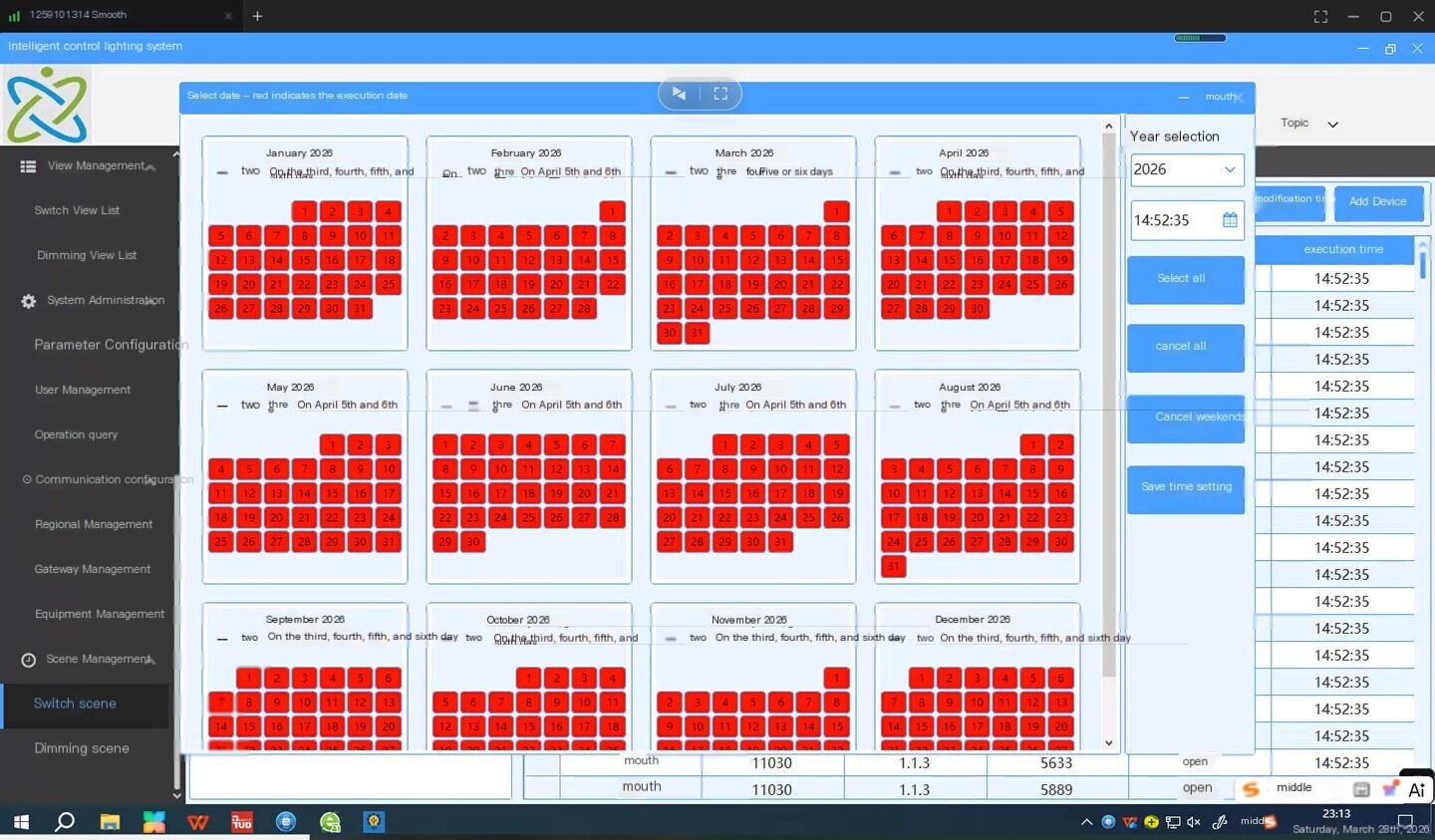

Supports full selection/batch deletion of scenarios, can configure execution plans by date (marked in red), supports year-round cycle timing, differentiated control on workdays/weekends, and achieves lighting automation.

(2) Dimming scene

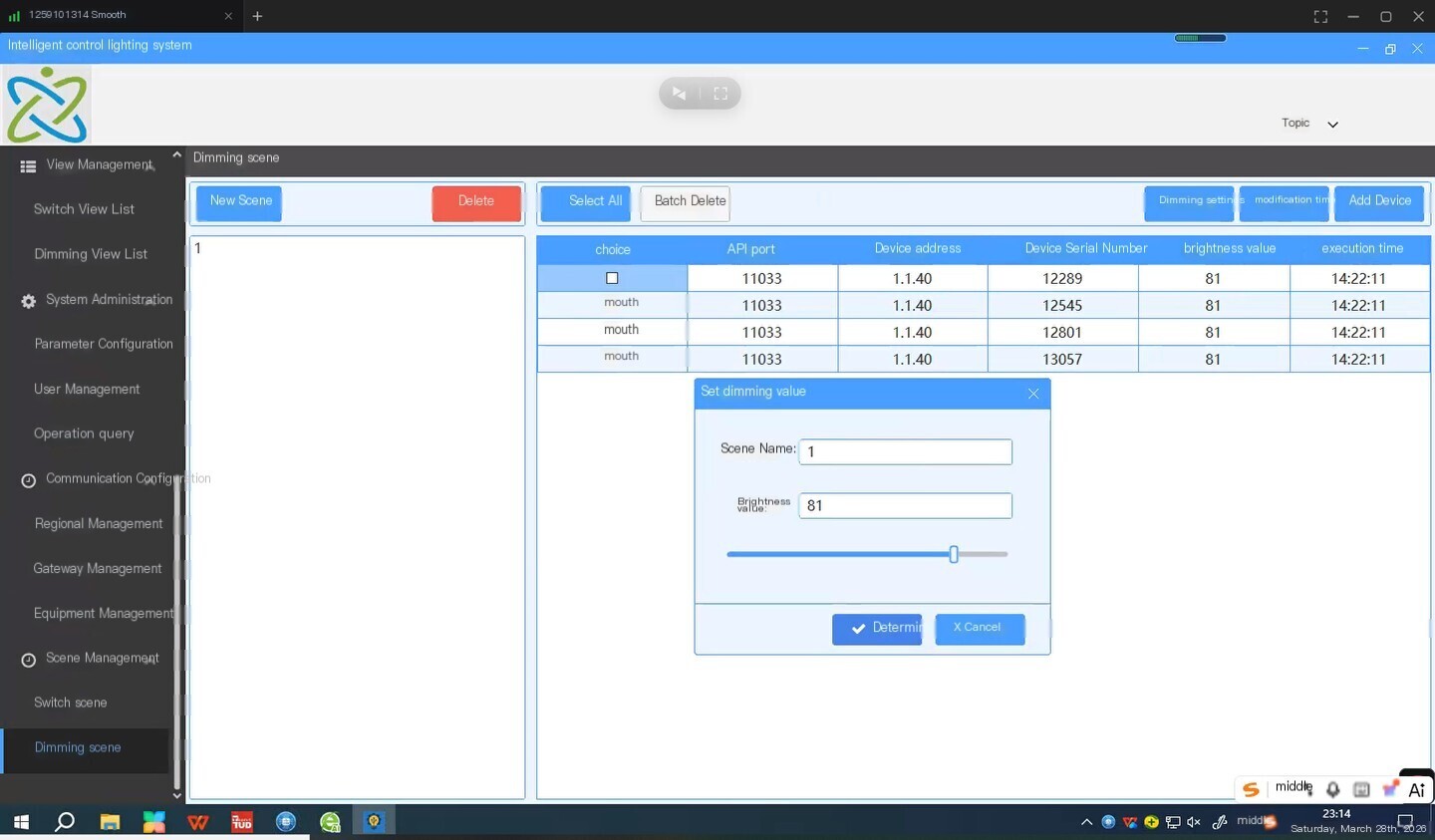

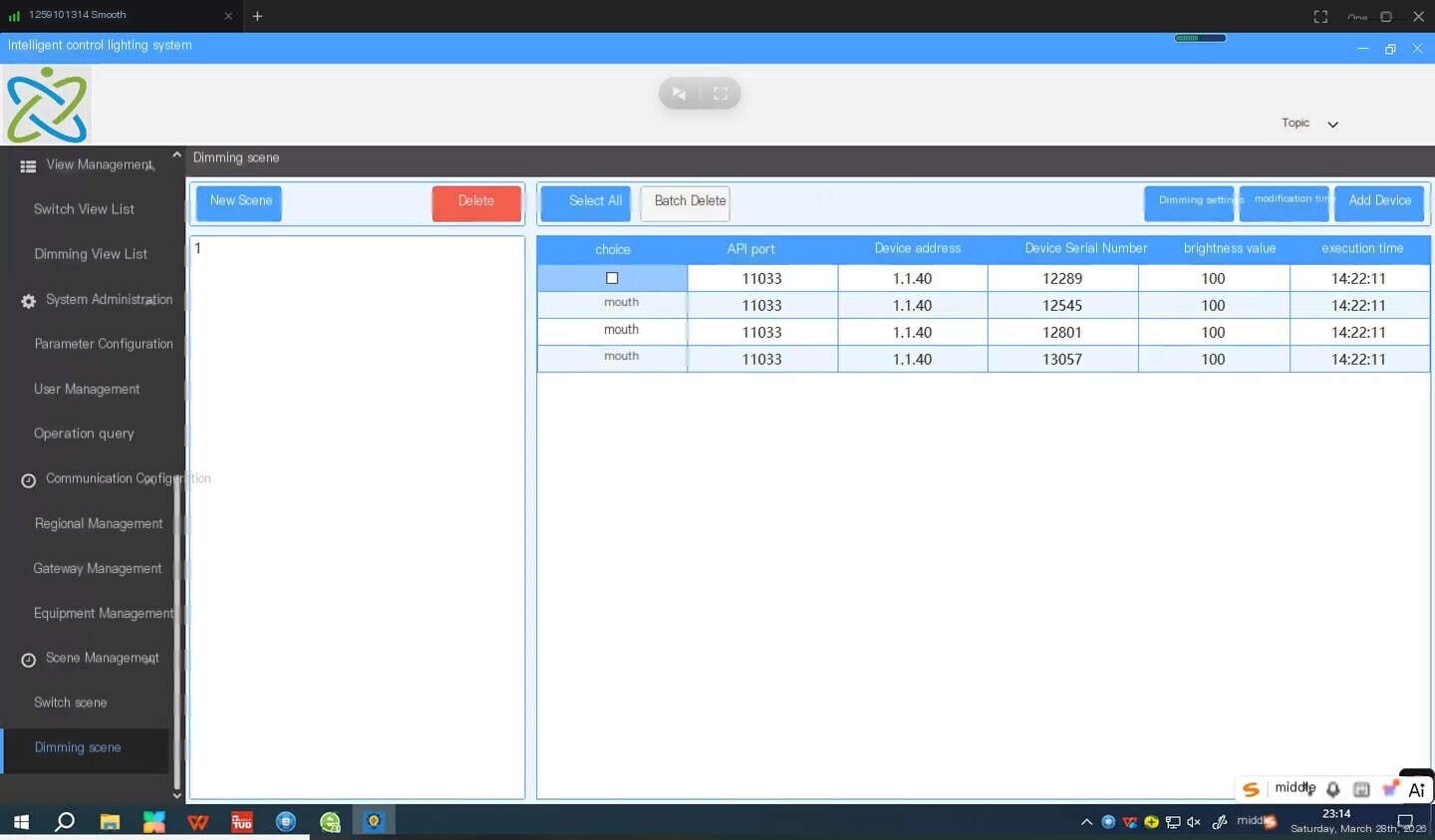

Support custom dimming scenes, precise setting of single/multiple light brightness values (0-100% adjustable), configuration of execution time and cycle plan.

Support scene brightness value Real-time modification and batch dimming, adapting to the lighting brightness requirements of different time periods and scenes.

5. System management

Parameter configuration: Supports system global parameters, communication parameters, and user permission parameter configuration.

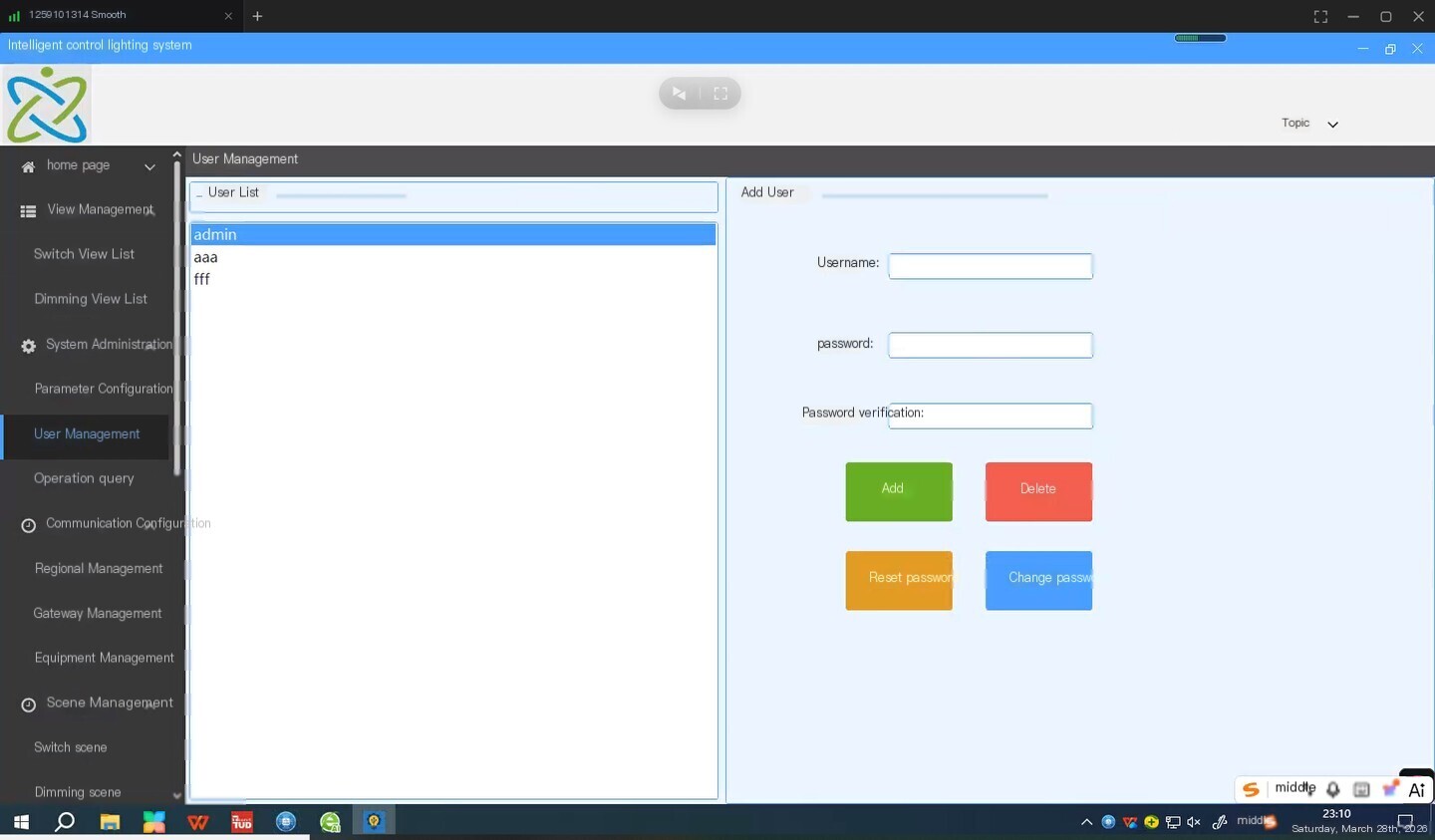

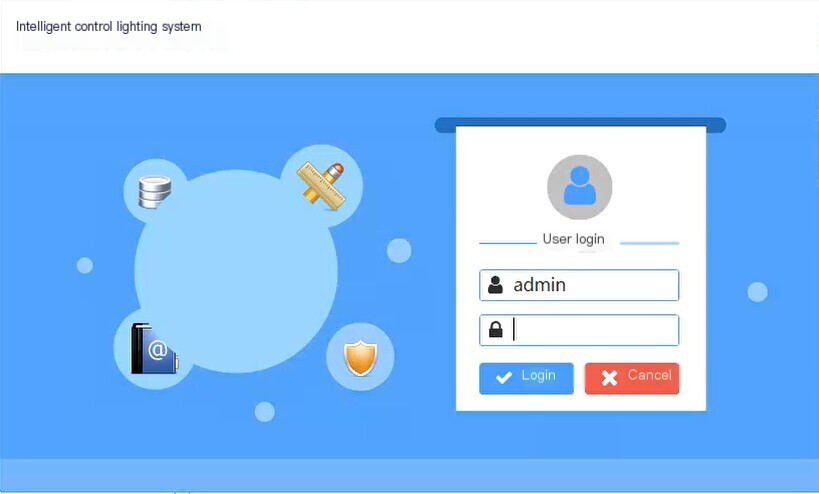

User management: Supports hierarchical control of multiple user permissions to ensure system operation security.

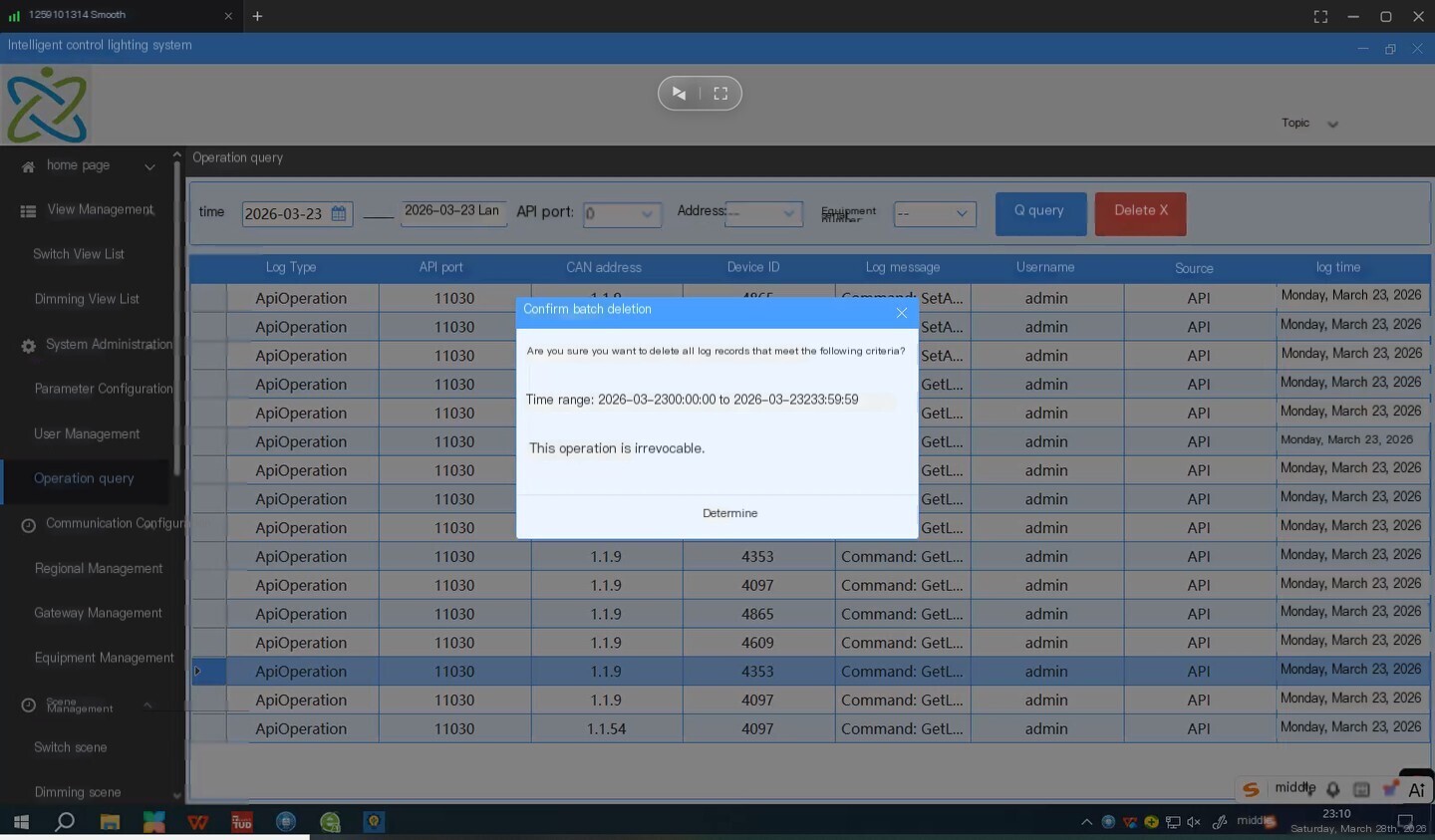

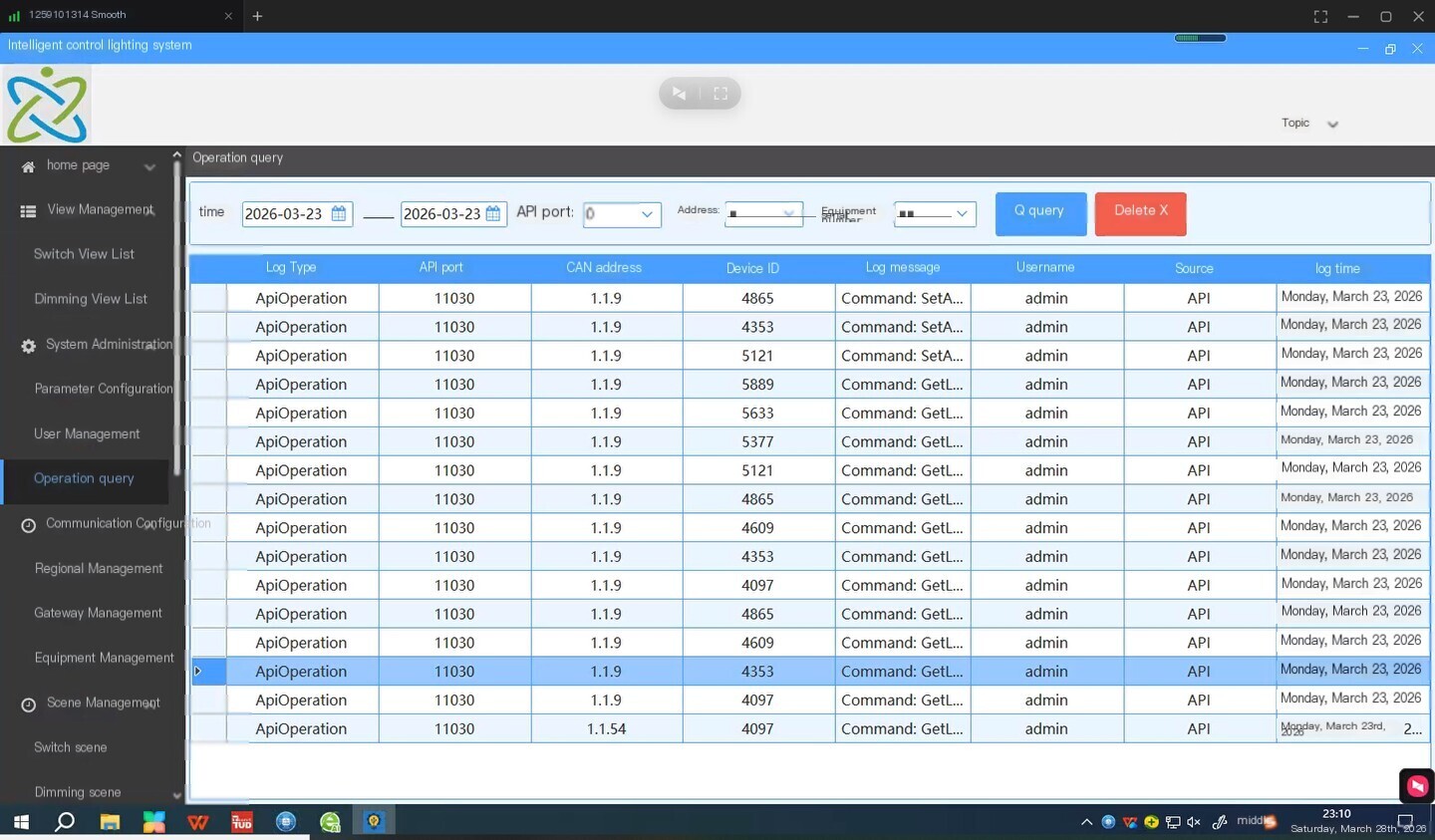

Operation query: Full log audit function, which can query operation logs by time, API port, and device address. It supports batch deletion of logs, traces the entire system operation process, and meets the requirements ofO&Mand compliance.

3、 Core operating procedures

1. System deployment process

Gateway Management → Add Gateway, configure API ports and their respective regions

Device Management → Batch add switch/dimming devices, complete device ledger entry

View Management → Create Switch/Dimming View Template, Configure Visual Control Interface

Scene management → Create switch/dimming scenes, configure scheduled execution plans

System debugging → Verify device communication and control logic through operation query logs

2. Daily O&M process

View interface one click control of light switch/dimming

Scene management executes preset lighting schemes

Operation query tracing system operation, troubleshooting equipment faults

Device Management Maintain equipment ledger and update system configuration

4、 Technical characteristics

Support centralized control of multiple Gateway, multiple regions, and multiple devices, suitable for large-scale lighting systems

Support 0-100% precise dimming and switch control to meet the needs of refined lighting

Full cycle timed scene control to achieve unmanned lighting O&M

Full operation log audit to ensure system security and traceability

Support batch operations to improve system deployment and O&M efficiency

Standardized API interface, compatible with third-party platforms such asIoT

5、 Applicable scenarios

Commercial buildings, office parks, campus lighting

Sports venues, exhibition centers, and industrial plant lighting

Multi area centralized control scenarios such as smart parks and municipal lighting
