PVPositive isolation network gate TCP forwarding power for green power station Data Acquisition

As a professional provider of IoT data acquisition solutions and an expert in industrial IoT data acquisition, the editor of Shanghai Data Acquisition IOT Technology Co., Ltd， (daq-iot) hereby presents the following introduction, and sincerely welcomes discussions and exchanges. Supported Communication Interfaces: CAN, RS485, Mbus, 4–20mA, Profibus, CC-Link, HART, digital I/O, etc. Industrial Protocols: Modbus RTU/TCP, HJ212, IEC104, DLT645, DLMS, IEC61850, MQTT, etc. Mail:export@daq-iot.com

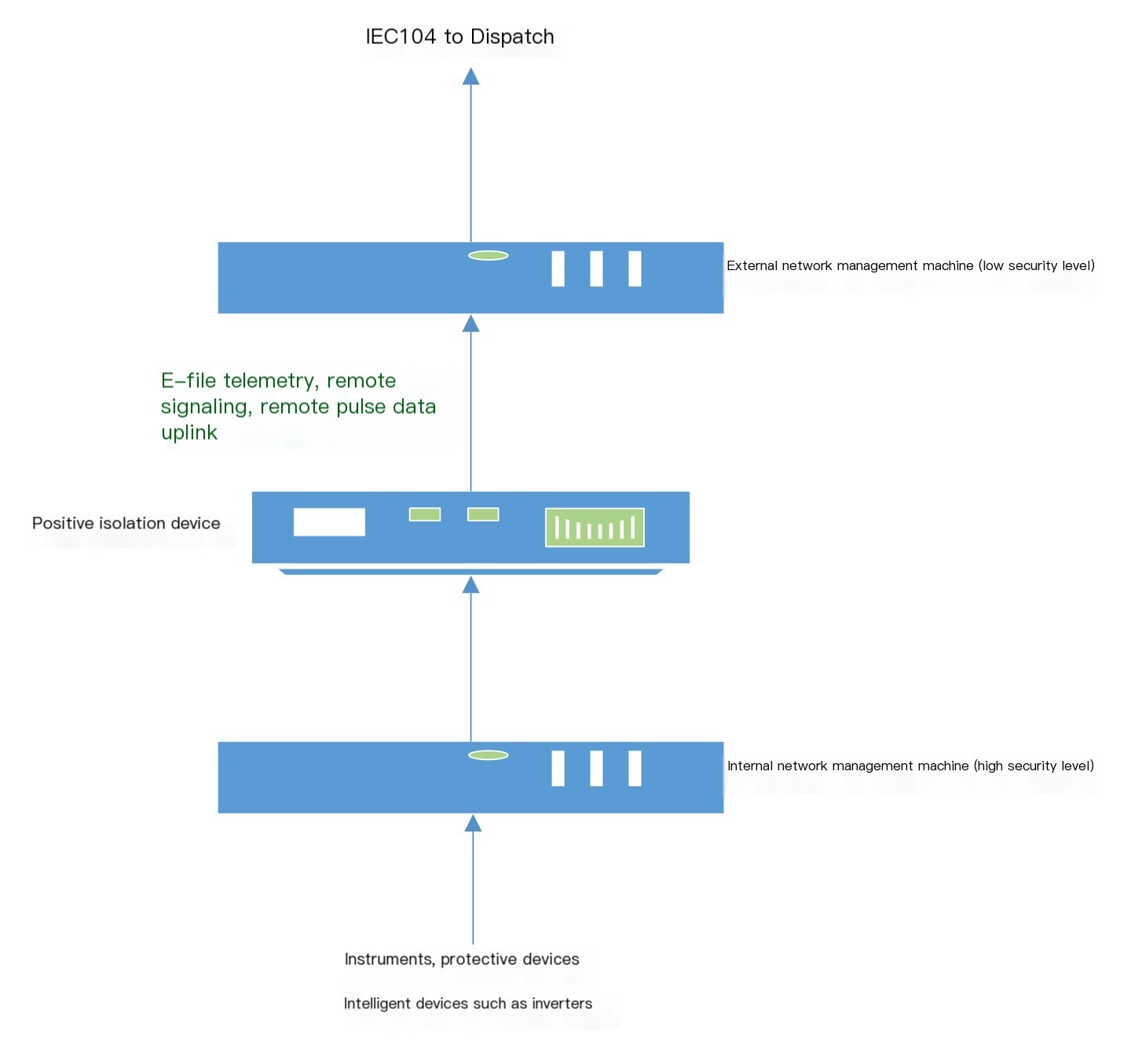

You can create a forwarding channel on Gateway and select forward isolation for ProtocolTCP forwarding(Client)， The interaction frequency is the time interval for data upload, which is recommended to be set to 1 second. It can be appropriately enlarged or reduced, and then the IP address and port number should be filled in (subject to actual situation);

The range for filling in the measurement point address is 0-65535 (inclusive), which is the samefunction codeThe address of the measuring point cannot be repeated, and the address of measuring points with different function codes can be repeated;

If there are multiple forwarding devices, the measurement point address cannot be duplicated under different forwarding devices. 、

New measurement point

Create a new forwarding test point, forwardfunction codeSelect according to the actual situation, and then fill in the measurement pointsAddressKeep the other parameters as default;

Attention
The range for filling in the measurement point address is 0-65535 (inclusive). Measurement points with the same function code cannot have duplicate addresses, while measurement points with different function codes can have duplicate addresses;
If there are multiple forwarding devices, the measurement point address cannot be duplicated under different forwarding devices.
